Product Images are shown for illustrative purposes only and may differ from actual product.

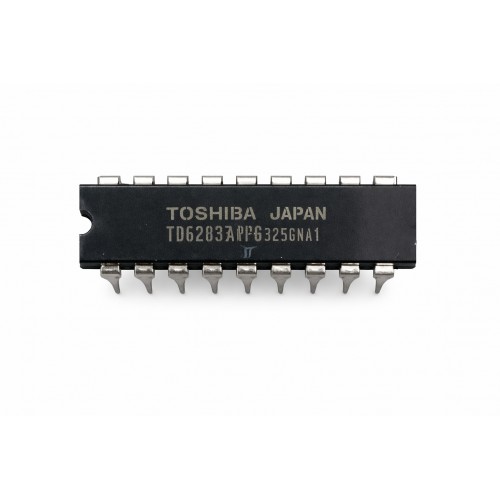

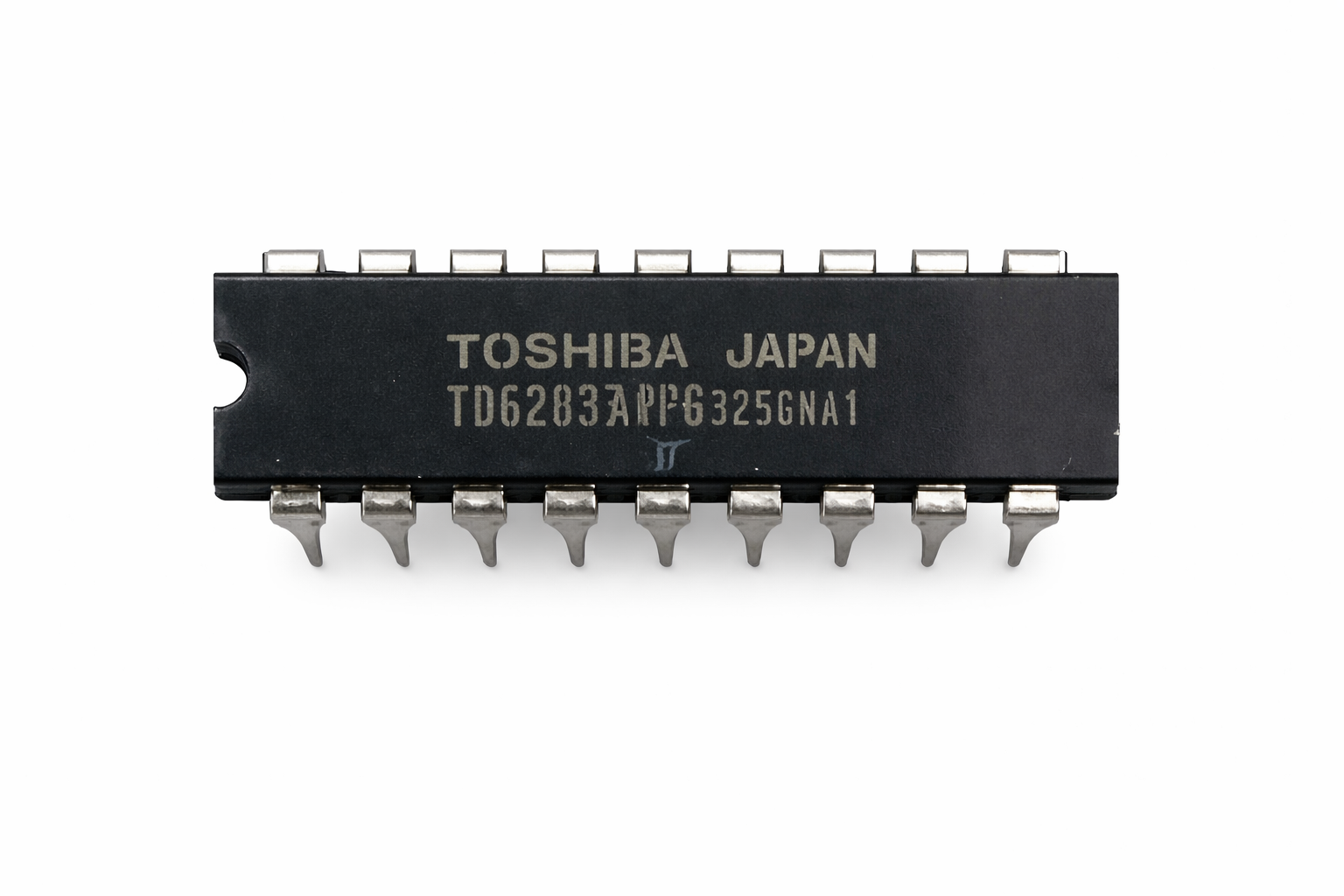

Toshiba TD62083APG 8-Channel Darlington Sink Driver IC

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Toshiba
  • SKU: 10568 | DAJ644

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 140.59 (inc GST)
    Rs.119.14 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Toshiba TD62083APG 8-Channel Darlington Sink Driver IC

TD62083APG 8-channel Darlington sink driver with 0–50 V output sustaining range, TTL/5 V CMOS-compatible inputs and integral clamp diodes.

The Toshiba TD62083APG is an eight-channel Darlington sink driver for controlling load current. It supports an output sustaining voltage range of 0 to 50 V and accepts TTL and 5 V CMOS-compatible inputs. Its eight channels can drive loads such as relays, lamps and LEDs.
Integral output clamp diodes help manage inductive loads during switching. The Darlington driver channels provide a practical way to control multiple loads from logic signals, while the TTL and 5 V CMOS input compatibility supports common control circuits. Use the TD62083APG in relay driver circuits, hammer drivers, lamp drivers and LED display drivers.
DNA stocks Toshiba components in the Misc Digital IC's category for circuit design and repair needs. Contact our team if you need help with selection. Check other Misc Digital IC's that we have in stock
DNA supports Indian electronics buyers with retail and bulk orders, and can help import parts that are not in stock. Contact us for this driver or related digital ICs, sensor modules and development boards. Contact Us

Features of Toshiba TD62083APG 8-Channel Darlington Sink Driver IC

  • Eight Darlington pairs sink load current across separate channels
  • Integral clamp diodes support switching inductive loads
  • TTL and 5 V CMOS-compatible inputs connect to common logic circuits
  • Multiple driver channels support control of several loads from one IC

Specifications of Toshiba TD62083APG 8-Channel Darlington Sink Driver IC

  • Output sustaining voltage: 0 to 50 V
  • Output current, all 8 channels active and Tpw = 25 ms: 347 mA/channel maximum at 10% duty cycle, 123 mA/channel maximum at 50% duty cycle
  • Absolute maximum output current: 500 mA/channel, not a recommended operating current
  • Input voltage, output on: 2.5 to 30 V
  • Collector-emitter saturation voltage: 1.6 V maximum at 350 mA output current and 500 µA input current
  • Clamp diode forward current: 400 mA maximum
  • Operating temperature: −40 to 85 °C
  • Package: DIP-18

Applications of Toshiba TD62083APG 8-Channel Darlington Sink Driver IC

  • Relay drivers
  • Hammer drivers
  • Lamp drivers
  • Display (LED) drivers

Related Links for Toshiba TD62083APG 8-Channel Darlington Sink Driver IC

Package Includes

  • 1 X Toshiba TD62083APG 8-Channel Darlington Sink Driver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
