• TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

Product Images are shown for illustrative purposes only and may differ from actual product.

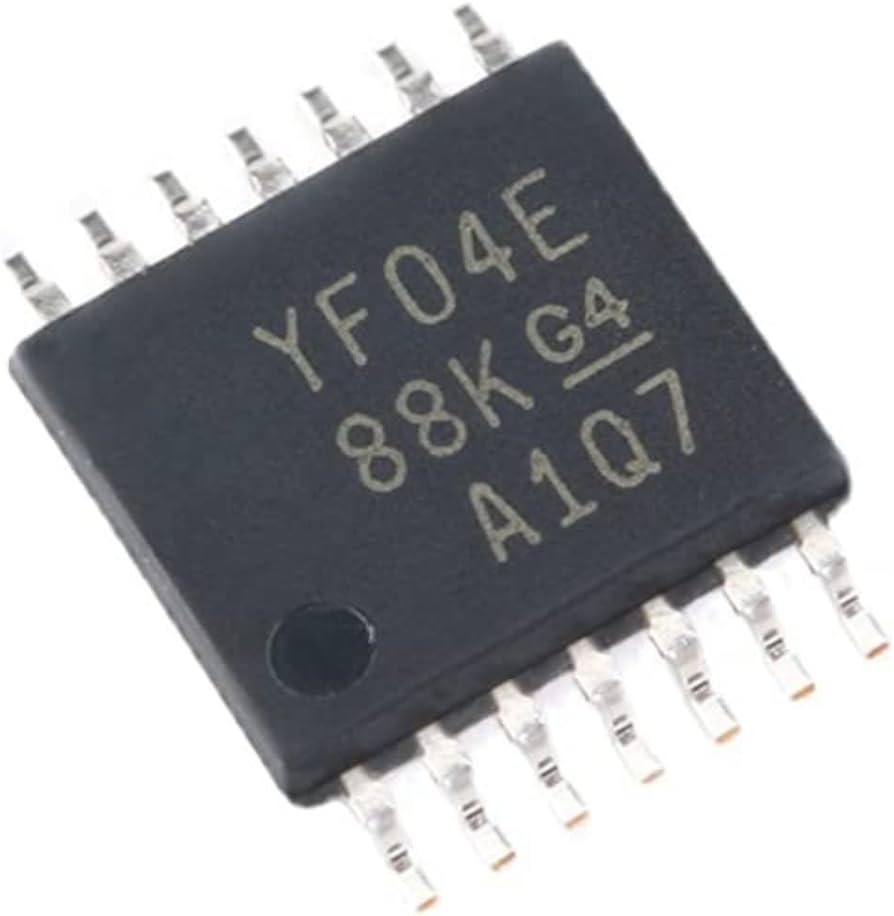

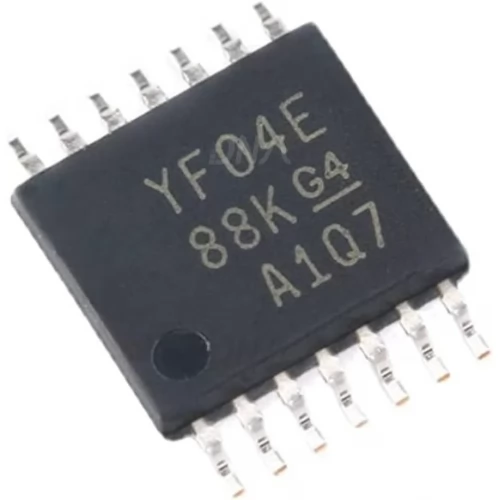

TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

  • Stock: 50
  • SKU: 7261 | DAF758

Availability: InStock priceValidUntil: 2025-10-01

  • Rs. 85.08 (inc GST)
    Rs.72.10 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

TXS0104E SMD IC is a 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

  • Bidirectional Voltage-Level Translation: Supports 1.2V to 3.6V on the A-side and 1.65V to 5.5V on the B-side.
  • Automatic Direction Sensing: Automatically detects and adjusts the direction of data flow.
  • High Speed: Operates at speeds up to 110 Mbps (push-pull) and 1 Mbps (open-drain).
  • ESD Protection: ±15-kV Human-Body Model (HBM) protection ensures robust performance in harsh environments.
  • Integrated Pull-up and Pull-down Resistors: Simplifies design by eliminating the need for external components.

Specifications of TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

  • Operating Voltage Range (VCCA): 1.2V to 3.6V
  • Operating Voltage Range (VCCB): 1.65V to 5.5V
  • Data Rate: Up to 110 Mbps for push-pull applications
  • Quiescent Current (ICC): Typically 5 µA (maximum 12 µA)
  • Operating Temperature Range: -40°C to +85°C
  • Package Type: TSSOP-14 (14-pin)

    Package Includes

    • 1 x TXS0104E 4-Bit Bidirectional Voltage-Level Translator IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
