• UC34063 DC-to-DC converter IC

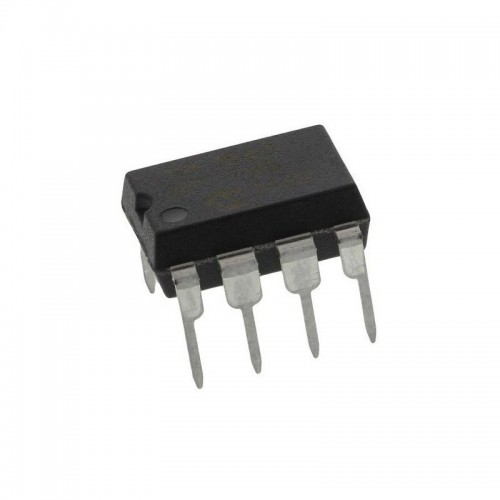

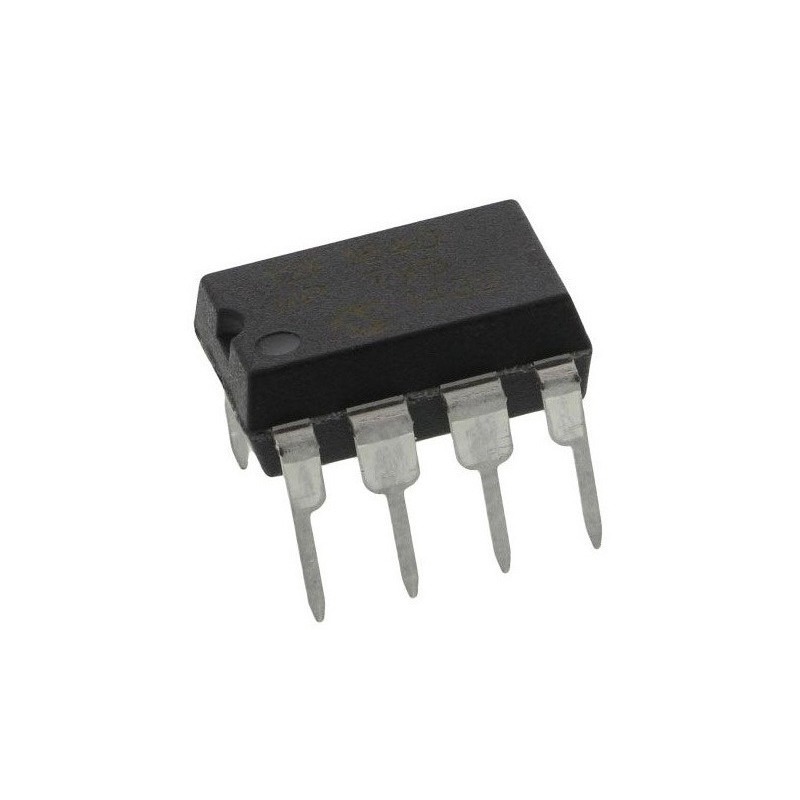

Product Images are shown for illustrative purposes only and may differ from actual product.

UC34063 DC-to-DC converter IC

  • Stock: Out Of Stock
  • SKU: 7143 | DAH057
  • Rs. 12.39 (inc GST)
    Rs.10.50 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

UC34063 DC-to-DC converter IC

UC34063 DC-to-DC converter IC

The MC34063A Series is a monolithic control circuit containing the primary functions required for DC to DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step Down and Step Up and Voltage Inverting applications with a minimum number of external components.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of UC34063 DC-to-DC converter IC

  • Operation from 3.0 V to 40 V Input
  • Low Standby Current
  • Current Limiting
  • Output Switch Current to 1.5 A
  • Output Voltage Adjustable
  • Frequency Operation to 100 kHz
  • Precision 2% Reference

Specifications of UC34063 DC-to-DC converter IC

  • Rating Symbol Value Unit
  • Power Supply Voltage VCC 40 Vdc
  • Comparator Input Voltage Range VIR ?0.3 to 40 Vdc
  • Switch Collector Voltage VC(switch) 40 Vdc
  • Switch Emitter Voltage (V Pin 1 = 40 V) VE(switch) 40 Vdc
  • Switch Collector to Emitter Voltage VCE(switch) 40 Vdc
  • Driver Collector Voltage VC(driver) 40 Vdc
  • Driver Collector Current (Note 1) IC(driver) 100 mA
  • Switch Current ISW 1.5 A

    Package Includes

    1 x UC34063 DC-to-DC converter IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
