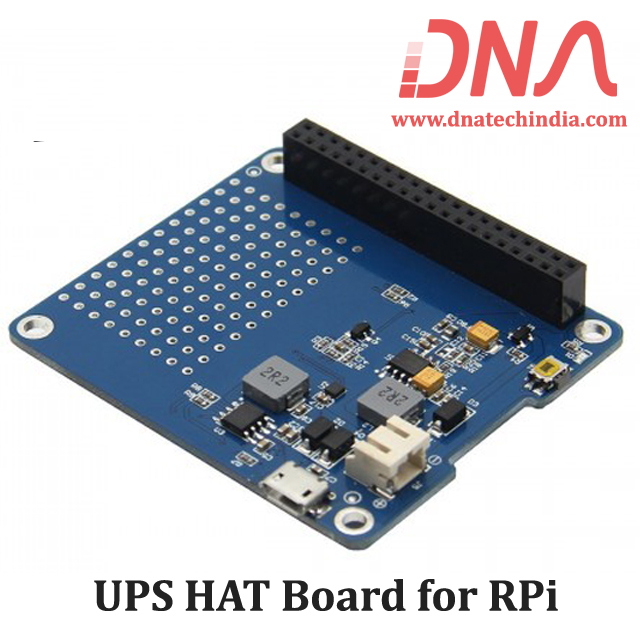

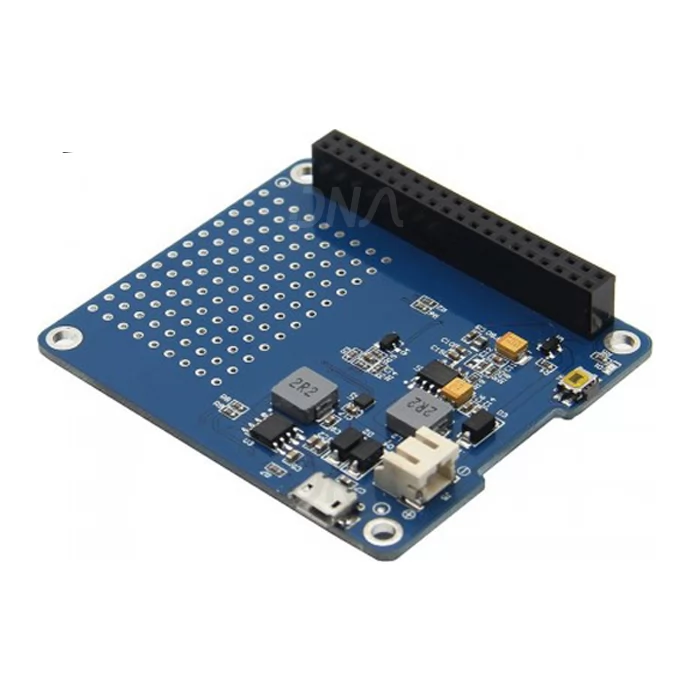

UPS HAT Board for Raspberry Pi

This Raspi UPS HAT is a micro UPS power source.

It supports a maximum input of 5V/2A and output of 5V/2A. With the Raspberry GPIO reserved, it can work with various expansion boards. More importantly, the built-in protection circuit prevents damages caused by over-recharging and over-discharging.

Features of Raspberry PI UPS HAT

• Standard dimension of Raspberry Pi HAT, and it's compatible with all of the expansion board.

• Cascading design saves space while powering raspberry pi and expansion boards without affecting GPIO expansion.

• Support up to 2A quick-charge technology, can rapidly charge full the battery.

• Can be charged and supplied power to raspberry pi at the same time.

• With 4 LED power indicator;

• Provides an example code to beginner to demonstrate how to demonstrate battery capacity displays the current battery level in the raspberry pi current program, it can detect the current battery, voltage etc.

• With safety protection circuit to prevent overcharge and over discharge.

• Retains the raspberry GPIO interface, you still can use all kinds of expansion board;

• It is Mini UPS power supply; maximum 5V / 2A output, and maximum 5V / 2A input.

Package included

• 1 x UPS HAT Board

Note : The Li-ion Battery and Raspberry Pi main board are not included
