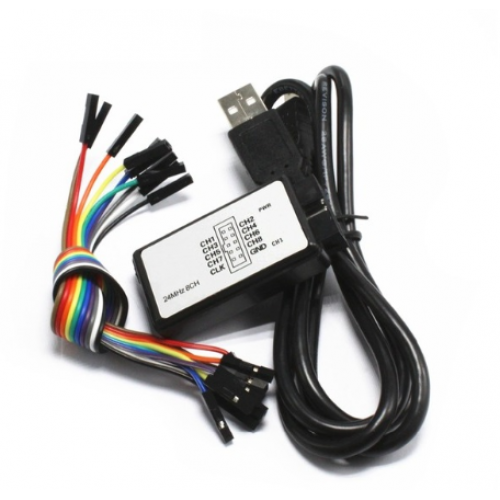

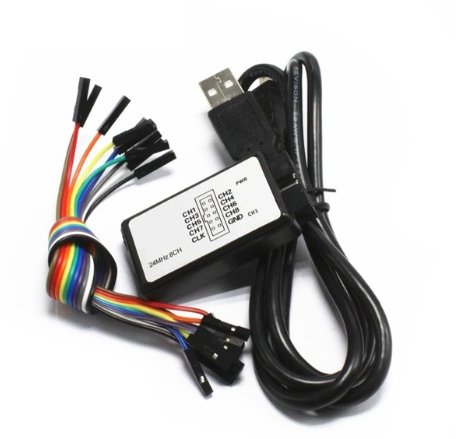

The USB Logic Analyzer 24M 8CH is a compact, affordable, and highly practical tool for capturing and analyzing digital signals in electronic circuits. It is designed with 8 independent input channels, allowing users to observe multiple digital lines simultaneously. The "24M" indicates a maximum sampling rate of 24 MHz, meaning it can reliably capture digital signals up to this speed.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• Logical light indication: a small light indicate CHO electrical level.

• Input feature: 5PF,100K Ohm.

• USB power supply; USB logic analyzer for monitoring, analyzing and debugging digital circuits

• 8-Channels USB logic analyzer with a 24Mhz sampling frequency

• Can analyze UART, IIC, and SPI, etc automatically

• Great for MCU, ARM system and FPGA development

Specifications of USB Logic Analyze 24M 8CH, MCU ARM FPGA DSP Debug Tool

• Channels: 8

• Max sampling rate:  24 MHz

• Input voltage range: 0 - 5 V

• Input impedance: High impedance

• Interface: USB 2.0

• Power supply: Powered via USB port

Applications of USB Logic Analyze 24M 8CH, MCU ARM FPGA DSP Debug Tool

• Capturing and decoding remote control signals

• Educational use for understanding digital logic

• General electronics diagnostics

• Monitoring ARM processor bus signals

Package Includes

      1 x USB Logic Analyze 24M 8CH, MCU ARM FPGA DSP Debug Tool
