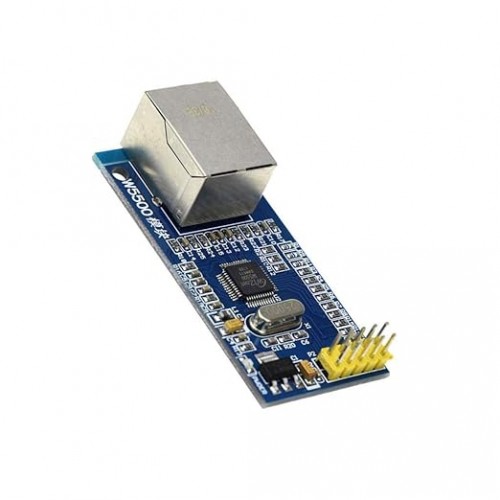

W5500 TCP/IP 51/STM32 Ethernet Network Module

W5500 TCP/IP 51/STM32 Ethernet Network Module

The W5500 Ethernet Module is a compact and efficient solution for adding wired network capabilities to embedded systems. Based on the WIZ net W5500 chip, it features a hardwired TCP/IP stack and integrated 10/100 Mbps Ethernet PHY, making it highly suitable for applications where reliable and deterministic network performance is needed. This module communicates with microcontrollers via SPI, making it compatible with a wide range of MCU platforms, including the 8051 family (51 series) and modern ARM Cortex-M devices like the STM32.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• W5500 Chip: Embedded hardwired TCP/IP stack supporting TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE.

• SPI Interface: Communicates with the MCU via SPI

• Network Protocols: Supports 8 independent sockets simultaneously.

• Built-in Ethernet PHY: Supports 10/100 Mbps Ethernet with auto-negotiation.

• Low Power Consumption: Sleep and Wake-on-LAN modes.

• RJ45 Connector: With built-in transformer for easy LAN connection.

Specifications of W5500 TCP/IP 51/STM32 Ethernet Network Module

• Main Chip: WIZ net W5500

• Host Interface: SPI

• SPI Speed: Up to 80 MHz

• Sockets: 8 independent hardware sockets

• Operating Temperature: -40°C to +85°C

Applications of W5500 TCP/IP 51/STM32 Ethernet Network Module

• IoT Gateways

• Web-enabled Embedded Device

• Smart Home Controllers

• Remote Data Loggers

Package Includes

      1 x W5500 TCP/IP 51/STM32 Ethernet Network Module
