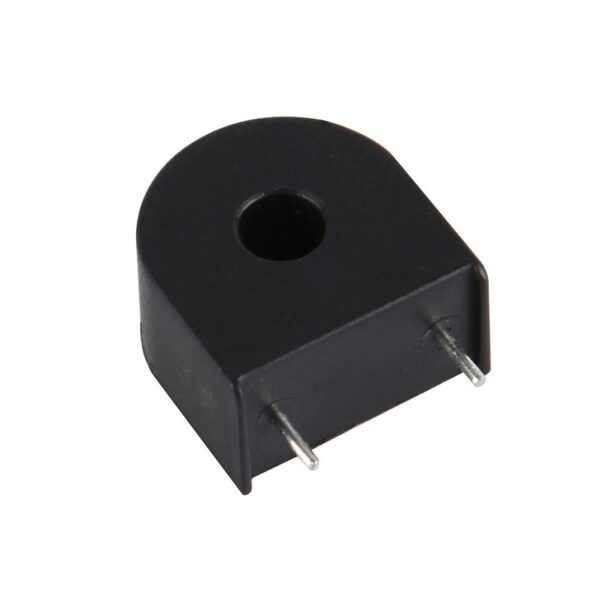

• ZMCT103E 40 Ampere Current Transformer – PCB Mounting

Product Images are shown for illustrative purposes only and may differ from actual product.

ZMCT103E 40 Ampere Current Transformer – PCB Mounting

  • Stock: 199
  • SKU: 3640 | DAF268
  • Rs. 88.50 (inc GST)
    Rs.75.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

ZMCT103E 40 Ampere Current Transformer – PCB Mounting

ZMCT103E 40 Ampere Current Transformer – PCB Mounting

ZMCT103E is a micro precision current transformer having a turns ratio of 2000:1 and can monitor a maximum AC current of 40 Ampere. ZMCT103E micro current transformer is very compact and lightweight and can be easily mounted on PCB making it perfect for various power monitoring applications. The ZMCT103E CT (Current Transformer) provides high accuracy and high isolation (4500 volts) making it perfect for your next AC current monitoring project. This Product is Known as 40A Sensor Current Sensor, Current Sensor, Hall Effect Based Current Switch, ZMCT103E, ZMCT103 Current Sensor, ZMCT103E Current Sensor Transformer, ZMCT103E, ZMCT103E Current Transformer, ZMCT103E 40A Current Transformer Sensor Module, ZMCT103E 40A Current Transformer.

DNA solutions, Nashik has various types of Current and Voltage Sensors. Check our complete collection of  Current and Voltage Sensor.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of ZMCT103E 40 Ampere Current Transformer – PCB Mounting

  • Application Measuring or protection
  • Input Current 0~40A(sampling resistor 100Ω)
  • Rated output current 2.5mA at input 5A
  • Turns Ratio 2000:1
  • linearity ≤0.2%(5%dot~120%dot
  • Model: ZMCT103E
  • Brand: ZEMING
  • Permissible error -0.3%≤f≤+0.3% (input 10A,sampling resistor 100Ω
  • Isolation Voltage: 4500V
  • Phase angle error ≤30'(input 10A, sampling resistor 100Ω
  • Accuracy 0.3 class
  • Encapsulation Epoxy
  • installation PCB mounting (Pin Length>3mm
  • Operating Temperature: -40℃ ~ +85℃
  • Lead Spacing pitch: 11 mm
  • Height: 18 mm
  • Width: 18 mm
  • Approx Weight: 10 gm

Application

  • Precise Measurement of Current And Power

Package Includes

1 x ZMCT103E 40 Ampere Current Transformer – PCB Mounting

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
