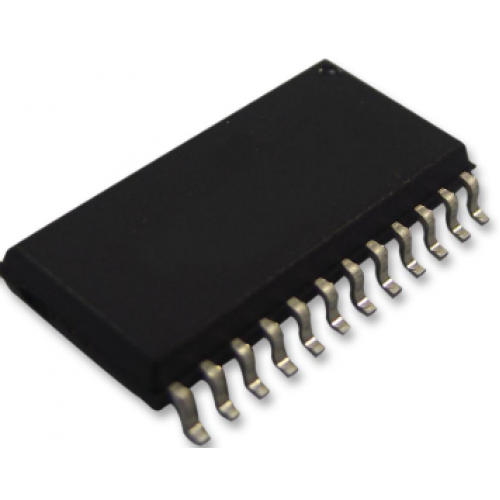

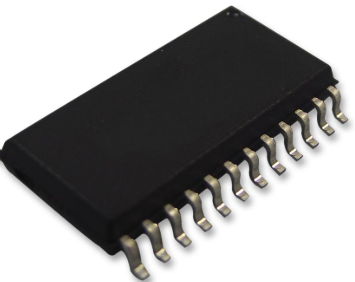

6ED2230S12TXUMA1 Gate Driver SMD IC

Infineon 6ED2230S12TXUMA1 Gate Driver SMD IC

6ED2230S12TXUMA1 Gate Driver IC for 3-phase MOSFETs, supports up to 1200 V with undervoltage lockout and fault reporting.

The Infineon 6ED2230S12TXUMA1 Gate Driver SMD IC is ideal for driving power MOSFETs and IGBTs in various applications, including industrial inverters and electric vehicle motor drivers. With its three half-bridge drivers, it provides excellent level shifting and isolation, supporting blocking voltages up to 1200 V. The built-in undervoltage lockout (UVLO) and advanced shoot-through protection enhance reliability and performance.

Designed for ease of use, the 6ED2230S12TXUMA1 Gate Driver SMD IC minimizes the need for external components, simplifying PCB design and improving system reliability. It operates effectively in a temperature range of –40°C to +125°C, making it suitable for various environments. Its integrated fault reporting ensures quick diagnostics, enhancing system safety.

Applications for the Infineon 6ED2230S12TXUMA1 include 3-phase motor control, HVAC systems, and industrial drives. This component is an essential part of modern electronic designs, especially in sectors requiring high efficiency and robustness.

Explore our range of MOSFET & IGBT products at DNA. The Infineon brand offers reliable solutions for your electronic needs. Check other "MOSFET & IGBT" that we have in stock.

If you are looking for specific electronic components, feel free to reach out to us. We can help you find parts like Crystals, LCDs, Resistors, and more. We also support import requests for hard-to-find items. Contact Us.

Features of Infineon 6ED2230S12TXUMA1 Gate Driver SMD IC

• Three half-bridge high and low side drivers
• Supports up to 1200 V blocking voltage
• Advanced shoot-through protection
• Undervoltage lockout (UVLO) for all channels
• Integrated fault reporting and diagnostic functions

Specification of Infineon 6ED2230S12TXUMA1 Gate Driver SMD IC

• Supply voltage range: 13.5 V to 20 V
• Output current (source/sink): 0.29 A / 0.6 A
• Maximum blocking voltage: 1200 V
• Operating temperature: –40°C to +125°C
• Built-in dead time and interlock functions
• Propagation delay: ~500 ns typical

Applications of Infineon 6ED2230S12TXUMA1 Gate Driver SMD IC

• 3-phase motor control
• Industrial inverters
• Electric vehicle motor drivers
• HVAC systems

Related Links for Infineon 6ED2230S12TXUMA1 Gate Driver SMD IC

• Other Products from MOSFET & IGBT Category

Package Includes

• 1 X Infineon 6ED2230S12TXUMA1 Gate Driver SMD IC
