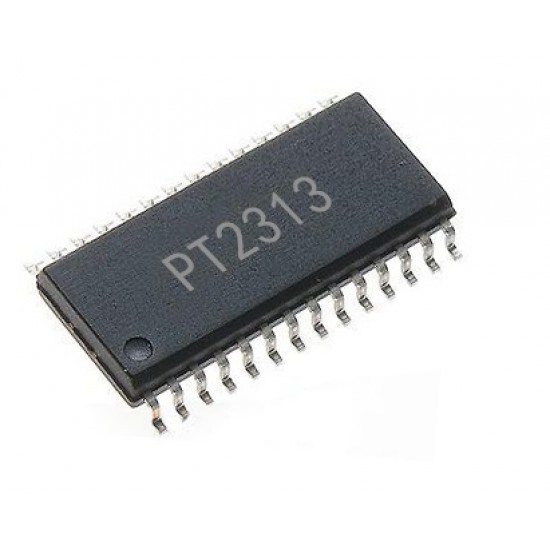

PT2313 4-Channel Audio Processor SMD IC

PT2313 4-Channel Audio Processor SMD IC

PT2313 is an four-channel digital audio processor utilizing CMOS Technology. Volume, Right/Left Bass and Treble Balance, Front/Rear Fader Processor are incorporated into a single chip. Loudness Function and Selectable Input Gain are also provided to build a highly effective electronic audio processor having the highest performance and reliability with the least external components. All functions are programmable using the Serial Bus. The pin assignments and application circuit are optimized for easy PCB layout and cost saving advantage for audio application. PT2313 is housed in a 28-pin DIP/SO Package and is functionally compatible with TDA7313.

DNA solutions, Nashik has various types of SMD IC. Check out our complete collection of  SMD IC.

• CMOS Technology


• Least External Components


• Treble and Bass Control


• Loudness Function


• 3 Stereo Inputs with Selectable Input Gain Input/Output for External Noise Reduction System/Equalizer


• 4 Independent Speaker Controls for Fader and Balance


• Independent Mute Function


• Volume Control in 1.25 dB/step


• Low Distortion


• Low Noise and DC Stepping


• Controlled by Serial Bus Micro-Processor Interface


Applications of  PT2313 4-Channel Audio Processor SMD IC

• Car Stereo (Audio)

• Hi-Fi Audio System

Package Includes

1 x   PT2313 4-Channel Audio Processor SMD IC
