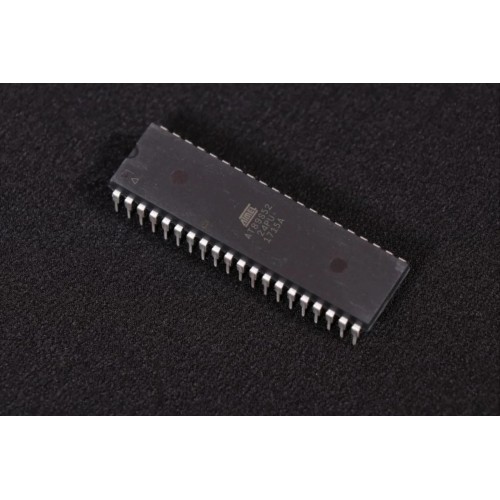

AT89S52 8-bit Microcontroller DIP IC

AT89S52 8-bit Microcontroller DIP IC

The AT89S52 is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory. The device is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with in-system programmable Flash on a monolithic chip, the Atmel AT89S52 is a powerful microcontroller which provides a highly-flexible and cost-effective solution to many embedded control applications.

DNA solutions, Nashik has various types of DIP IC's. Check out our complete collection of DIP IC's.

• Compatible with MCS®-51 Products


• 8K Bytes of In-System Programmable (ISP) Flash Memory


• 4.0V to 5.5V Operating Range


• Fully Static Operation: 0 Hz to 33 MHz


• Three-level Program Memory Lock


• 256 x 8-bit Internal RAM


• 32 Programmable I/O Lines


• Three 16-bit Timer/Counters


• Eight Interrupt Sources


• Full Duplex UART Serial Channel


• Low-power Idle and Power-down Modes


• Interrupt Recovery from Power-down Modes


Specifications of AT89S52 8-bit Microcontroller DIP IC

• Microcontroller: AT89S52


• Architecture: 8-bit


• Instruction Set: 8051 compatible


• Package: DIP (Dual In-line Package)
