1 Channel  Relay Board 5 Volt 30 Ampere

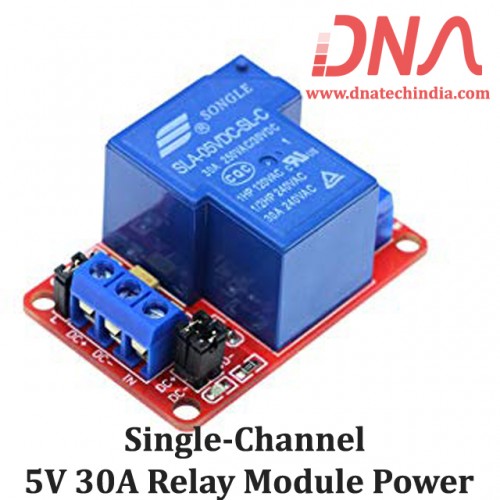

Single channel 5 Volts 30 Ampere Relay Module

The Songle Single channel 5 Volts 30 Ampere Relay Module relay is a 1-channel isolated relay module board with LED indicators, It can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5 Volts.

The relay module uses an authentic quality mechanical relay and the industry’s top quality subminiature two-way isolation optical coupling which gives you the strong anti-interference ability, and stable performance.

The user can choose the relay control level, can be a high level off, also can be low level and off. The Songle Single channel 5 Volts 30 ampere T-Relay Module Relay contains a limited flow resistance, can directly use the power supply is negative control, you can also use the MCU I/O control.

This 5 Volt 30 Ampere high current relay module has a power indicator light and also a load relay status indicator led i.e. when the relay is ON this LED will Turn ON. With this relay, you can easily control high current electrical appliances, lights, motors etc.

We have various types of Relay & SSR Modules which you can use to control appliances. Check out our complete collection of MOSFET, SSR & Relay Modules. We also have various types of high quality Relays & SSR.

Single Channel 30 Ampere Relay Module interface

• DC+: DC power supply positive pole

• DC-: DC power supply negative pole

• IN: signal triggering pin

• JD+: relay control voltage positive

• JD-: relay control voltage negative

Features of 5 Volts Single Channel 30 Ampere Relay Module

• Optical coupling isolation, driving ability is strong, stable performance; Trigger current is 5mA

• The module can be set high level or low-level trigger by the jumper

• Rated current of the interface is 16A

• DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal.

• High and low-level trigger mode selection. Jumper and L pin connection, IN pin, is low-level triggerJumper and H pin connection, IN pin, is the high-level trigger.

Specification of 5 Volts Single Channel 30 Ampere Relay Module

• Trigger Voltage (VDC) : 5

• Trigger Current (mA) : 20

• Switching Voltage (VAC) : 250@30 Ampere

• Switching Voltage (VDC) : 30@30 Ampere

• Length (mm) : 50

• Width (mm) : 33

• Height (mm) : 24

• Weight (gm) : 36

Package Includes :

• 1 x 1 Channel 5 Volt 30 Ampere Relay Module
