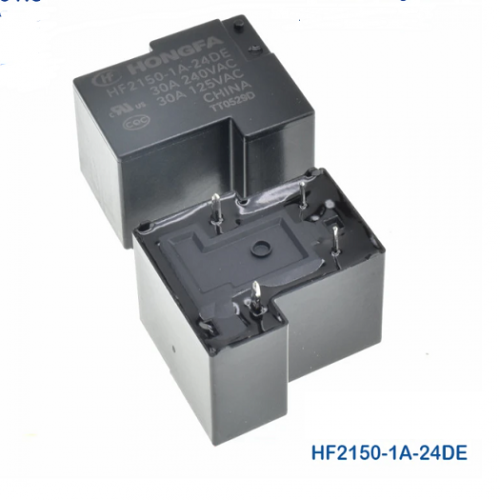

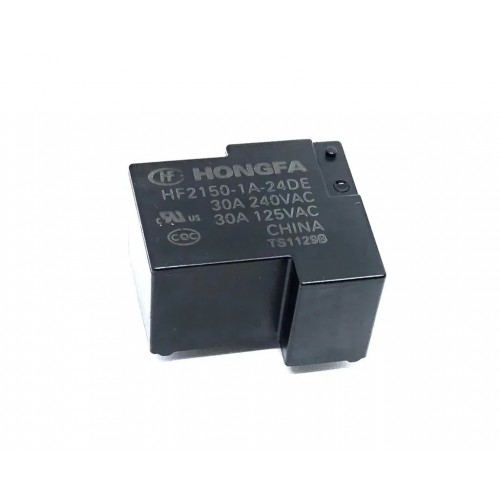

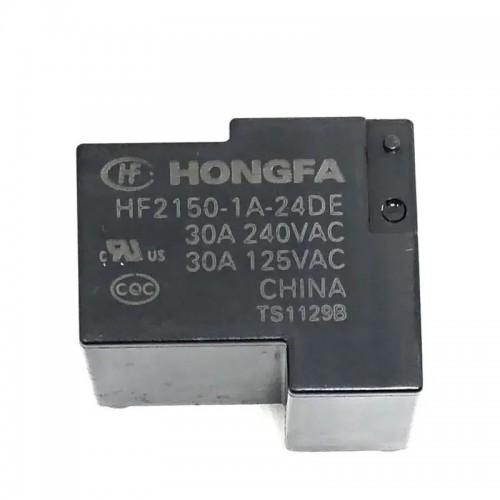

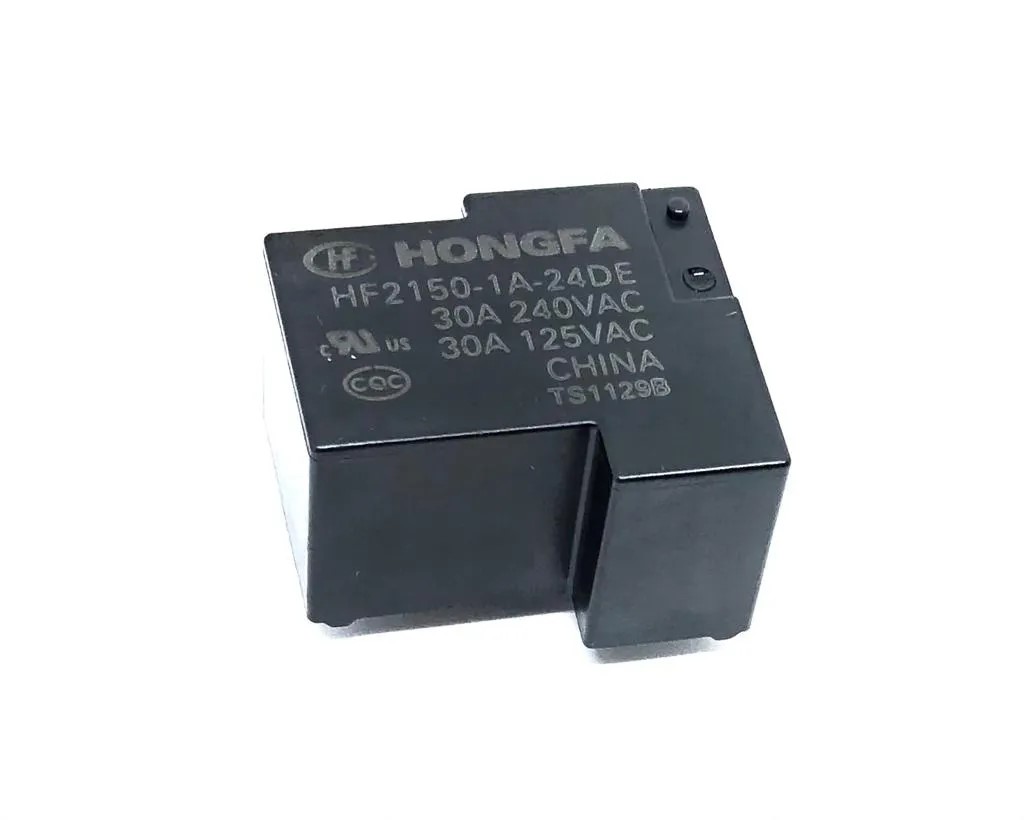

Hongfa HF2150-1A-24DE 24 VDC Miniature High-Power Relay

HF2150-1A-24DE miniature relay with a 24 VDC coil, one normally open contact, and a 30 A rating at 240 VAC for resistive loads.

The Hongfa HF2150-1A-24DE is a plastic-sealed electromechanical relay with a 24 VDC coil and a normally open relay contact. When the coil is energized, the contact closes to connect the load. The contact rating is 30 A at 240 VAC for resistive loads.
Its sealed construction encloses the relay assembly, while PCB-mount terminals support board installation. The AgCdO contacts provide the switching path for the relay. This miniature high-power relay suits designs that need a board-mounted relay with a single normally open contact and a 24 VDC control coil.
DNA offers Hongfa Relay parts for electronics builds and maintenance. Browse available Hongfa options and related relay products. Check other Hongfa Relay that we have in stock
Indian electronics buyers can contact DNA if a part is hard to find. We offer import support and help with retail and bulk orders. Ask us about Resistors, Development Modules, Sensors, Microcontrollers, Power Supplies, or SMPS. Contact Us

Features of Hongfa HF2150-1A-24DE 24 VDC Miniature High-Power Relay

  • Single normally open contact for load switching
  • Plastic-sealed construction encloses the relay assembly
  • AgCdO contact material
  • PCB coil and contact terminals support board mounting
  • Electromechanical switching operation

Specifications of Hongfa HF2150-1A-24DE 24 VDC Miniature High-Power Relay

  • Nominal coil voltage: 24 VDC
  • Contact rating: 30 A at 240 VAC or 20 A at 30 VDC, resistive load
  • Maximum switching voltage: 277 VAC / 30 VDC
  • Maximum switching power: 11080 VA / 1200 W, 1 Form A
  • Coil resistance: 660 Ω ±10% at 23 °C
  • Insulation resistance: 1000 MΩ minimum at 500 VDC
  • Dielectric strength: 2500 VAC for 1 minute between coil and contacts
  • Ambient temperature: -55 °C to +85 °C

Related Links for Hongfa HF2150-1A-24DE 24 VDC Miniature High-Power Relay

Package Includes

  • 1 X Hongfa HF2150-1A-24DE 24 VDC Miniature High-Power Relay
