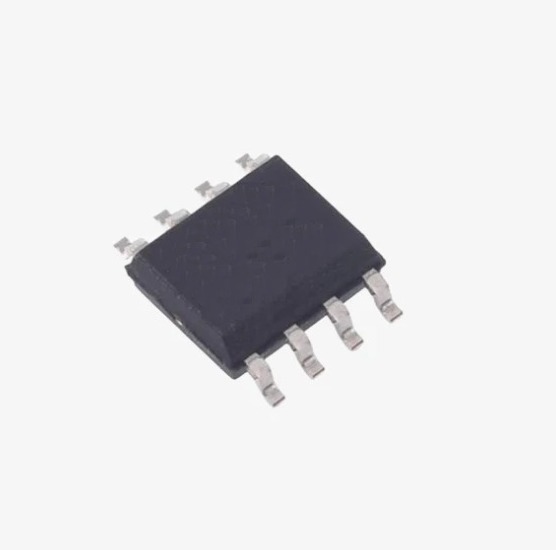

STC STC8G1K08-36I-SOP8 8051-Core Microcontroller IC

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-12-20

  • Brand: STC Micro
  • SKU: 8134 | DAH638

Availability: InStock priceValidUntil: 2026-12-20

  • Rs. 64.90 (inc GST)
    Rs.55.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

STC STC8G1K08-36I-SOP8 8051-Core Microcontroller IC

STC8G1K08-36I-SOP8 8051-compatible microcontroller with 8 KB Flash, six GPIOs, and UART, SPI and I2C interfaces.

The STC STC8G1K08-36I-SOP8 is an 8051-compatible microcontroller for embedded control. Its 1T core handles one machine cycle per clock, and 8 KB Flash memory stores user code. The SOP8 device combines processing, memory and control interfaces in a compact package.
Its UART, SPI and I2C interfaces let it exchange data with other circuit blocks. Two timers support control tasks, while the hardware multiplier and divider handle arithmetic in the chip. Four GPIO modes help match different input and output circuit needs.
Use this device in motor control systems, data acquisition systems and factory automation equipment. Its integrated timers, serial links and GPIO let one controller manage several embedded tasks.
DNA stocks STC microcontrollers for embedded designs in the 8051 Family. Choose this device for controller projects that need integrated memory, timers and serial interfaces. Check other 8051 Family that we have in stock
If you cannot find a part, contact DNA. We support Indian electronics buyers with import support and retail or bulk orders. Ask us about related items such as MOSFETs, capacitors, diodes and DC to DC converter modules. Contact Us

Features of STC STC8G1K08-36I-SOP8 8051-Core Microcontroller IC

  • Instruction-set compatibility with traditional 8051 code
  • SPI and I2C can operate in master or slave mode
  • UART supports serial communication
  • Hardware multiplier and divider handle arithmetic
  • GPIO supports quasi-bidirectional, push-pull, open-drain and high-impedance input modes

Specifications of STC STC8G1K08-36I-SOP8 8051-Core Microcontroller IC

  • Flash memory: 8 KB
  • Operating voltage: 1.9–5.5 V
  • Operating temperature: -40°C to +85°C
  • Internal RC clock: 4–36 MHz, adjustable via ISP
  • GPIO: 6
  • Timers: 2 × 16-bit
  • Serial interfaces: 1 UART, SPI and I2C
  • Package: SOP8

Applications of STC STC8G1K08-36I-SOP8 8051-Core Microcontroller IC

  • Motor control systems
  • Data acquisition systems
  • Factory automation equipment
  • Engine control units

Related Links for STC STC8G1K08-36I-SOP8 8051-Core Microcontroller IC

Package Includes

  • 1 X STC STC8G1K08-36I-SOP8 8051-Core Microcontroller IC
