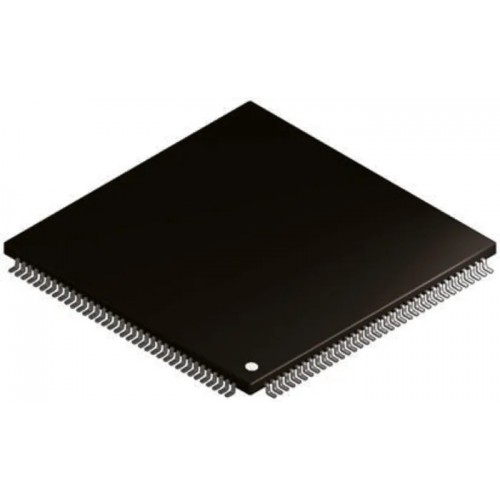

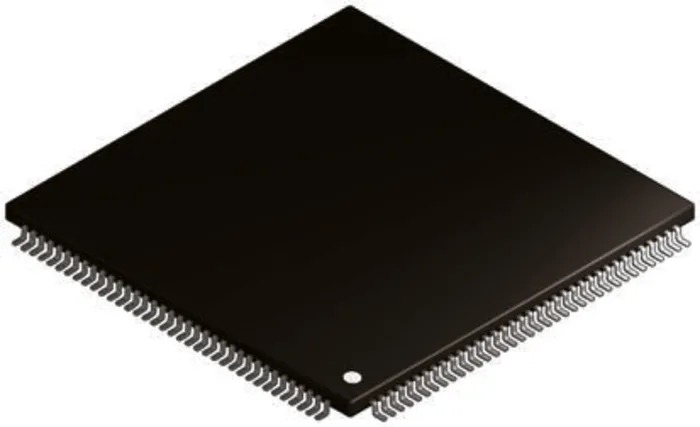

• STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

Product Images are shown for illustrative purposes only and may differ from actual product.

STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

  • Stock: Out Of Stock
  • SKU: 7332 | DAD748

Availability: NotInStock priceValidUntil: 2025-10-01

  • Rs. 1,321.60 (inc GST)
    Rs.1,120.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

The STM32F429ZGT6 IC MCU 32BIT devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHZ. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm® single precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The  STM32F429xx devices incorporate high-speed embedded memories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/OS and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

  • LCD parallel interface, 8080/6800 modes
  • LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)
  • Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
  • 2×12-bit D/A converters
  • General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
  • 8- to 14-bit parallel camera interface up to 54 Mbytes/s
  • True random number generator

Specifications of STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

  • Core Processor: ARM Cortex-M4
  • Flash Memory: 1 MB
  • Timers: 16 timers (including 2 advanced control timers for motor control)
  • Low Power Modes: Sleep, Stop, and Standby modes with RTC
  • Display Interface: TFT-LCD controller with 24-bit parallel RGB interface

    Package Includes

    • 1 x STM32F429ZGT6 IC MCU 32BIT 1MB FLASH 144LQFP

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
