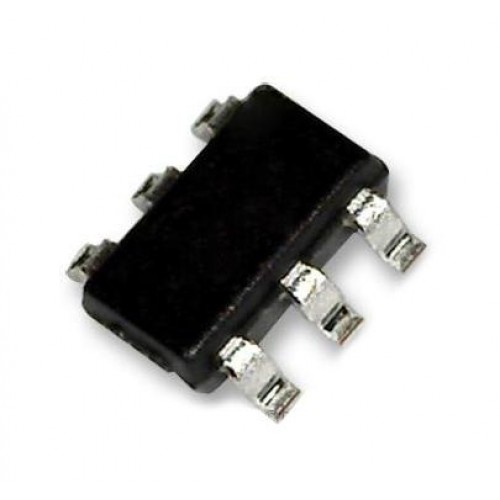

LTC4412IS6 SOT-23-6 HOT-SWAP CONTROLLER ANALOG DEVICES IC

Analog Devices LTC4412IS6 Hot-Swap Controller IC

LTC4412IS6 SOT-23-6 Hot-Swap Controller with very low voltage drop and automatic switching between DC sources.

The Analog Devices LTC4412IS6 Hot-Swap Controller IC efficiently manages power switchover and load sharing. It connects an external P-channel MOSFET to create a near ideal diode function, which reduces losses in power supply OR'ing. With a voltage drop of just 20mV, the LTC4412IS6 is perfect for applications needing extended battery life and minimal heating. The device automatically disconnects the load from the battery when an auxiliary source is connected, simplifying the design of power systems.

In addition to its low quiescent current of 11µA, the LTC4412IS6 Hot-Swap Controller operates over a wide voltage range from 3V to 28V for AC/DC adapters and 2.5V to 28V for batteries. It also supports reverse battery protection and can drive various MOSFETs, making it suitable for a multitude of applications. This makes it an ideal choice for powering cellular phones, notebook computers, digital cameras, and USB-powered peripherals.

Explore the versatility of the Analog Devices LTC4412IS6 Hot-Swap Controller IC and its ability to simplify load sharing among multiple batteries. This controller is a reliable component for uninterruptible power supplies and logic-controlled power switches, ensuring efficient operation across various electronic devices.

Explore the Diodes & Transistors category at DNA, featuring the Analog Devices brand. Discover reliable solutions for your electronic projects. Check other "Diodes & Transistors" that we have in stock.

At DNA, we understand the diverse needs of Indian electronics buyers. If you can't find specific components, we can import them for you. Whether you need parts for retail or bulk orders, we are here to help. Consider related items like Nextion Displays, Connectors, Programmers, Analog ICs, Hongfa Relays, and IGBTs. Contact Us.

Features of Analog Devices LTC4412IS6 Hot-Swap Controller IC

• Very Low Loss Replacement for Power Supply OR’ing Diodes
• Minimal External Components
• Automatic Switching Between DC Sources
• Simplifies Load Sharing with Multiple Batteries
• Low Quiescent Current: 11µA
• 3V to 28V AC/DC Adapter Voltage Range
• 2.5V to 28V Battery Voltage Range
• Reverse Battery Protection
• Drives Almost Any Size MOSFET for Wide Range of Current Requirements

Specification of Analog Devices LTC4412IS6 Hot-Swap Controller IC

• Voltage Drop: 20mV
• Quiescent Current: 11µA
• AC/DC Adapter Voltage Range: 3V to 28V
• Battery Voltage Range: 2.5V to 28V
• Package Type: SOT-23-6

Applications of Analog Devices LTC4412IS6 Hot-Swap Controller IC

• Cellular Phones
• Notebook and Handheld Computers
• Digital Cameras
• USB-Powered Peripherals
• Uninterruptible Power Supplies
• Logic Controlled Power Switch

Package Includes

• 1 X Analog Devices LTC4412IS6 Hot-Swap Controller IC
