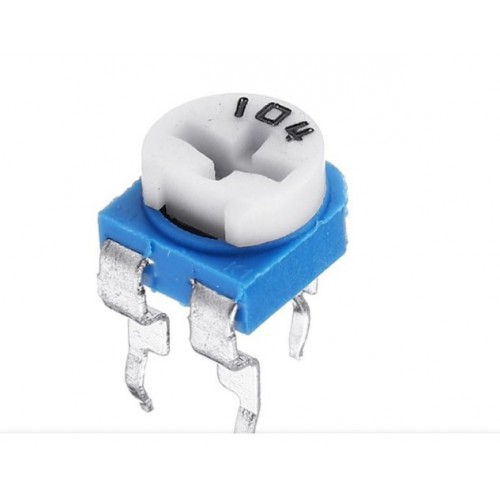

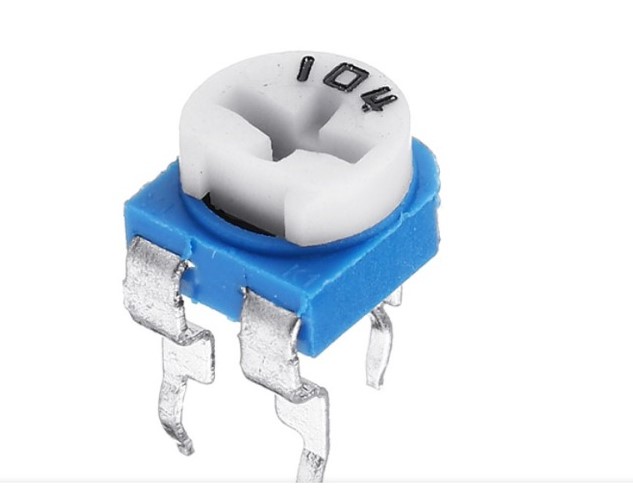

100K ohm Single Turn Trimpot

100K Ohm Single Turn Trimpot

100K Ohm Trimpot for tuning circuits; Adjustable resistance; Compact design for PCB mounting.

The 100K Ohm Single Turn Trimpot is an essential component for fine-tuning circuit parameters such as voltage and signal levels. It offers adjustable resistance up to 100,000 ohms, making it ideal for calibration in both analog and digital circuits. This trimpot is compact and can be easily mounted on PCBs, ensuring reliability in various applications.

With a single-turn adjustment, the 100K Ohm Single Turn Trimpot allows for quick and precise tuning. It features a durable resistive element made from carbon or cermet, providing longevity and minimal drift. This component is suitable for use in sensor calibration, signal level adjustments, and educational electronics projects.

Choose the 100K Ohm Single Turn Trimpot for your circuit needs and experience its efficiency in adjusting volume, tone, or brightness control. Its versatility and ease of use make it a valuable addition to your electronic components collection.

Explore the diverse range of Potentiometers at DNA. The Nashik brand offers quality components perfect for your projects. Check other Potentiometer that we have in stock.

At DNA, we cater to Indian electronics buyers. If you need specific components, reach out to us. We can import parts not available in stock. We support retail and bulk orders for items like Crystal, Microcontroller, DC to DC Converter Module, Inductor, Sensor, and Transistor. Contact Us.

Features of 100K Ohm Single Turn Trimpot

• Resistance: 100K Ohms (100,000Ω)
• Single-turn adjustment for quick tuning
• Compact and lightweight
• Designed for PCB mounting
• Long operational life with minimal drift

Specification of 100K Ohm Single Turn Trimpot

• Resistance Value: 100K Ohms
• Adjustment Turns: Single Turn
• Resistive Material: Cermet or Carbon
• Mounting Type: Through-Hole
• Power Rating: 0.25W (250 mW) typical
• Operating Voltage: Up to 200V
• Temperature Range: -55°C to +125°C
• Wiper Type: Center tap adjustable
• Dimensions: ~6–10 mm wide

Applications of 100K Ohm Single Turn Trimpot

• Sensor calibration
• Adjusting signal levels
• Lab prototypes and test circuits
• Educational electronics projects
• Volume, tone, and brightness control

Related Links for 100K Ohm Single Turn Trimpot

• Other Products from Potentiometer Category

Package Includes

• 1 X 100K Ohm Single Turn Trimpot
