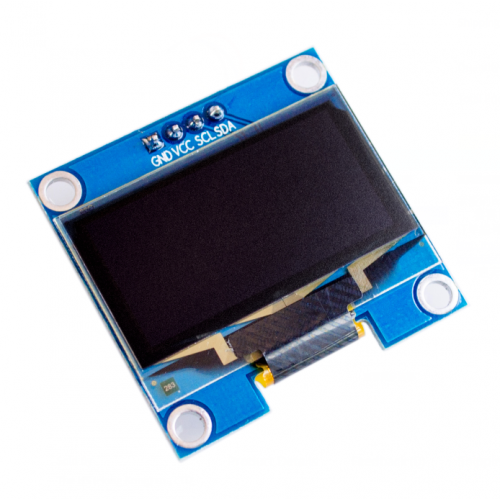

4Pin 128X64 White Color OLED Display

This is a 0.96 inch white OLED display module.

The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128x64. The package includes display board,display, 4 pin male header presoldered to board.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

OLED monochrome 128x64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

Features of 4 pin 128 x 64 OLED Display

• Super High Brightness (Adjustable)

• Super High Contrast (Adjustable)

• Embedded Driver/Controller

• Display size : 0.96'

• Resolution radio :128 x 64

• Interface modes : I2C

• working voltage : 3.3V

• Control Chip : SSD1306

Interface pin for 4 PIN 128x64 OLED

• VCC : 3.3 volts - 5 Volts

• GND : Ground

• SCL : Serial Clock

• SDA : Serial Data
