Product Images are shown for illustrative purposes only and may differ from actual product.

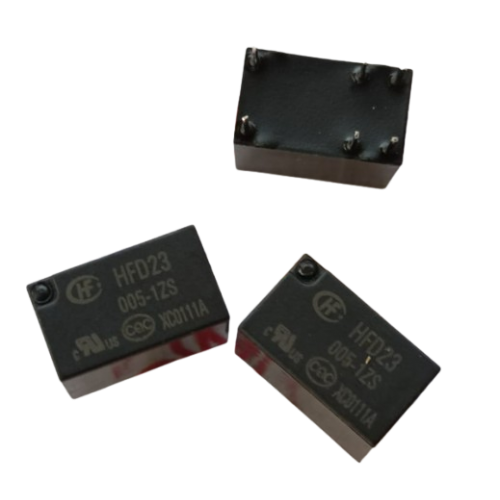

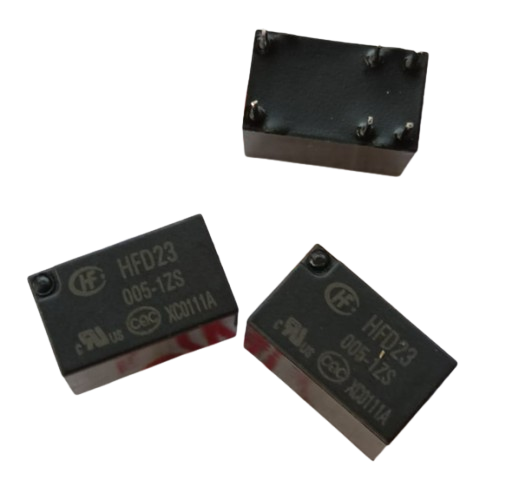

Hongfa HFD23/005-1ZS 5V Subminiature Signal Relay

  • Stock: 26

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Hongfa
  • SKU: 8726 | DAI181

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 88.46 (inc GST)
    Rs.74.97 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hongfa HFD23/005-1ZS 5V Subminiature Signal Relay

Hongfa HFD23/005-1ZS is a 5 VDC subminiature signal relay with a 1 Form C contact, sensitive coil and gold-plated AgNi contacts.

Hongfa HFD23/005-1ZS is a 5 VDC subminiature signal relay for electromechanical signal switching. Its 1 Form C contact provides a changeover path for routing signals in a compact PCB design.
The sensitive coil uses about 150 mW, which helps limit coil power in the relay circuit. Gold-plated AgNi contacts support signal contact performance, while the plastic-sealed construction and through-hole terminals suit PCB assembly.
Use this PCB signal switching relay in security systems, automation and signal processing, measurement equipment, or home appliances. Its changeover contact lets one relay switch a signal between two paths.
DNA supplies Hongfa Relay products for electronics design, repair and production in India. Browse our Hongfa signal relays and related parts for control and measurement work. Check other Hongfa Relay that we have in stock
Indian electronics buyers can contact DNA if a part is not listed. We support imports and retail or bulk orders. Ask us about DC to DC Converter Module, Microcontroller or other electronic parts. Contact Us

Features of Hongfa HFD23/005-1ZS 5V Subminiature Signal Relay

  • 1 Form C changeover contact for signal routing
  • Sensitive coil design uses about 150 mW
  • Gold-plated AgNi contacts
  • Plastic-sealed construction
  • Through-hole terminals for PCB mounting

Specifications of Hongfa HFD23/005-1ZS 5V Subminiature Signal Relay

  • Rated coil voltage: 5 VDC
  • Rated contact load: 0.5 A at 125 VAC or 1 A at 30 VDC
  • Maximum switching current: 2 A
  • Maximum switching voltage: 125 VAC / 60 VDC
  • Maximum switching power: 62.5 VA / 30 W
  • Coil resistance: 167 Ω ±10% at 23°C
  • Ambient temperature: -40°C to 85°C
  • Body dimensions: 12.3 × 10 × 7.3 mm

Applications of Hongfa HFD23/005-1ZS 5V Subminiature Signal Relay

  • Security systems
  • Signal routing and switching
  • Measurement and instrumentation
  • Home appliances

Related Links for Hongfa HFD23/005-1ZS 5V Subminiature Signal Relay

Package Includes

  • 1 X Hongfa HFD23/005-1ZS 5V Subminiature Signal Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
