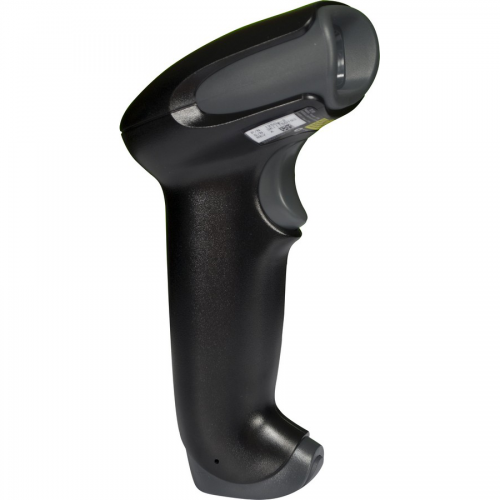

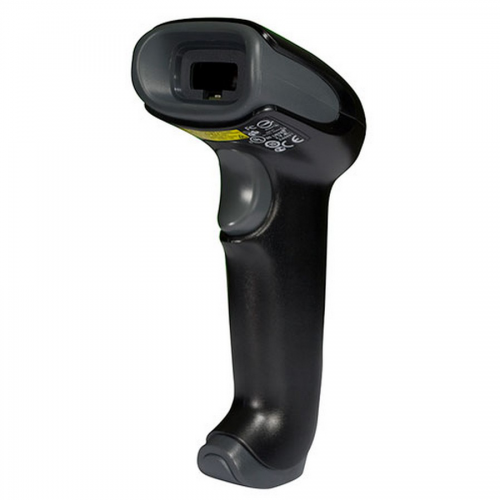

1250G-2USB-I Single line Barcode Scanner

Honeywell’s Voyager® 1250g single-line laser barcode scanner (Without Stand)is simple to set up and provides aggressive reading of linear barcodes.

The 1250g barcode scanner is capable of reading barcodes up to 23 inches away, reducing reach-related fatigue and improving employee comfort. For users that require hands-free scanning, an easy-to-assemble stand increases throughput by incorporating automatic in-stand detection. Features optimized laser scanning technology to read poorly printed or damaged barcodes.

Features of 1250G-2USB-I

• Ease of use : Simplify set up with quick and easy stand assembly; ergonomic design reduces user fatigue in scan-intensive applications.

• Increases throughput : Extended depth of field makes an easy task of scanning out-of-reach items; provides true object detection and automatic in-stand detection and configuration.

• Remote MasterMind : Lowers total cost of ownership by up to 60% by reducing technician travel time and expenses; scanner updates and diagnostics are able to be performed by one person in a single location.

Mechanical Data of 1250G-2USB-I

• Dimensions : (LxWxH) 60 mm x 168 mm x 74 mm (2.3? x 6.6? x 2.9?)

• Weight : 133 g (4.7 oz)

Electrical Data of 1250G-2USB-I

• Input Voltage : 5 V ± 5%

• Operating Power : 700 mW; 140 mA (typical) @5V

• Standby Power : 425 mW; 85 mA (typical) @ 5V

• Host System Interfaces : Multi-interface; includes USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V, 4 signals), Keyboard Wedge,

• RS-232C ( ± 12V), IBM RS485 supported via adapter cable

Environmental Data of 1250G-2USB-I

• Operating Temperature : 0°C to 40°C (32°F to 104°F)

• Storage Temperature : -20°C to 60°C (-4°F to 140°F)

• Humidity : 5% to 95% relative humidity, non-condensing

• Drop : Designed to withstand 30 drops on concrete from 1.5 m (5’)

• Environmental Sealing : IP40

• Light Levels :  0-75,000 Lux (direct sunlight)

Performance Data of 1250G-2USB-I

• Scan Pattern : Single scan line

• Scan Angle Horizonta l: 30°

• Print Contrast : 20% minimum reflectance difference

• Pitch, Skew : 60°, 60°

• Decode Capabilities : Reads standard 1D and GS1 DataBar symbologies
