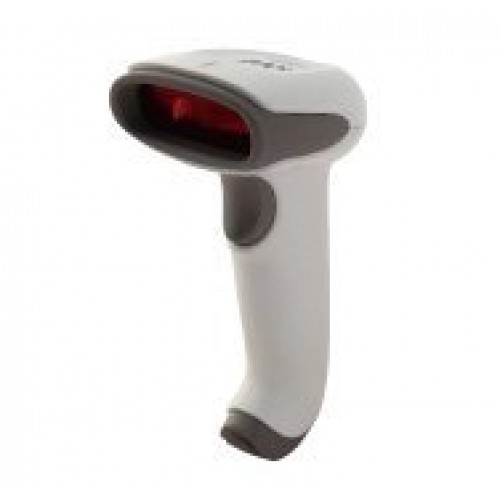

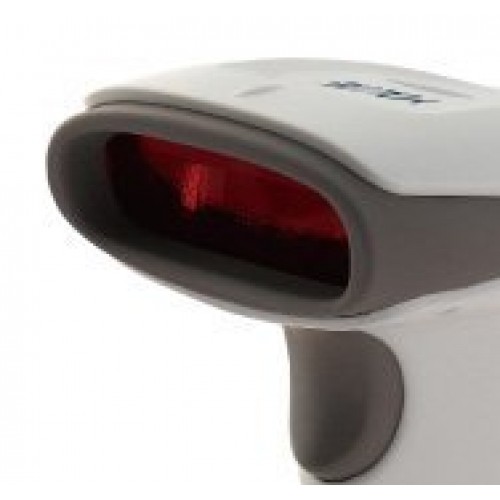

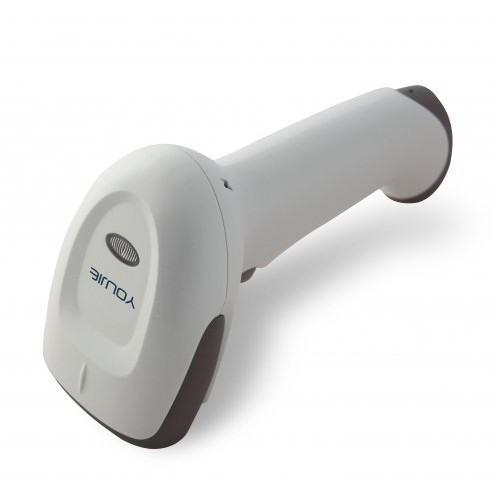

YJ3300 Single line Barcode Scanner

YJ3300 Single Line Barcode Scanner is a cost-effective single-line laser USB Bar-code scanner with optimized performance from Youjie by Honeywell.

This USB Barcode Scanner is an affordable hand-held laser barcode scanner that offers an alternative  to CCD scanners. Its functional ergonomic design enables itself to fit in a wide variety of applications.

Features of YJ3300 Barcode Scanner

• Compact design and outstanding performance: Integrated state-of-the-art laser decoding technology enables high-speed and sensitive scanning performance

• Reads all linear bar codes: Reads all popular standard 1D barcodes in the world, meeting the requirements of most application conditions

• High cost-effectiveness : : Enjoys superior performance at a low price, the performance of a laser scanner bought at the price of a red-light scanner

•  Ergonomic form factor : Increased comfort in using experience decreases long-time operation fatigue

Mechanical Data of YJ3300 Barcode Scanner

• Dimensions (LxWxH) : 110mm x70 mm x 153mm

• Weight : 120g

Electrical Data of YJ3300

• Input Voltage : 5VDC ±0.25V

• Power-typical : 675mW ([email protected])

• 700mW ([email protected])

• Laser Level : Class 1; IEC60825-1

• Electromagnetic Compatibility : EN55022 Class B

Environmental Data of YJ3300

• Operating Temperature : 0°C - 40°C

• Storage Temperature : -40°C - 60°C

• Humidity : 5% to 95% relative humidity, non-condensing

• Light Levels : 4842 LUX (150m candlelight)

• Drop : Designed to withstand 1m drops

• Environmental Sealing : Sealed to resist airborne particulate contaminants

Performance Data of YJ3300 Barcode Scanner

• Light Source : Visible Laser Diode 650 nm ± 10 nm

• Visual Indicators : Green=laser shines, ready to scan; red= successfully decoding

• System Interface : Keyboard Wedge, Independent Keyboard Wedge, USB

• Scan Pattern : Single line

• Scan Speed : 72 scan lines/second

• Scan Angle : Horizontal : 46°

• Print Contrast : 35% minimum reflectance difference

• Pitch, Skew : 68°, 52°

• Decode Capabilities : All standard 1D
