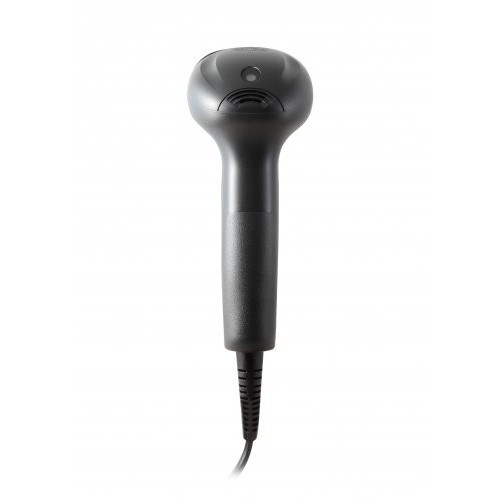

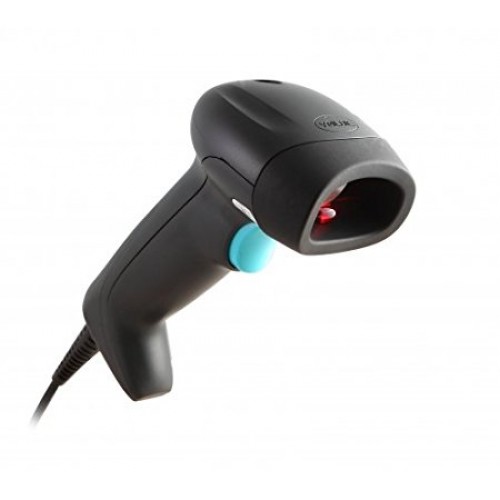

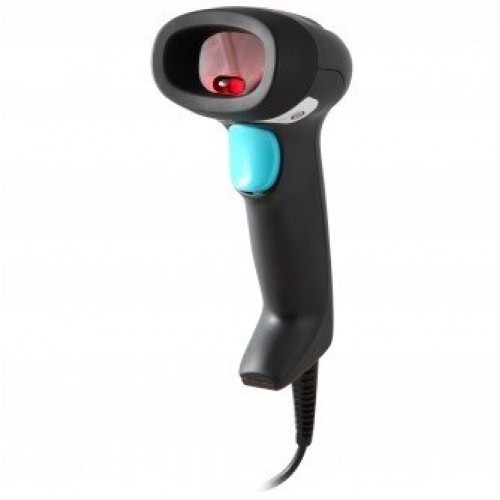

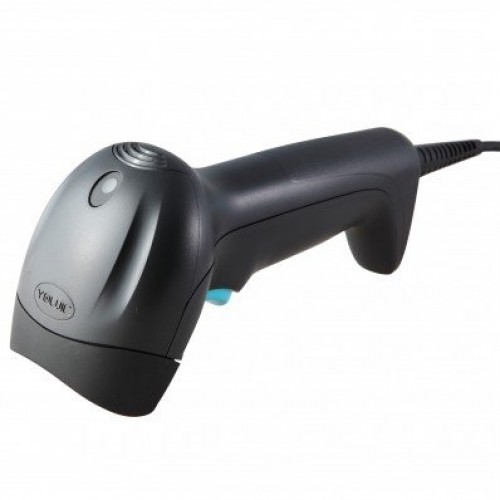

ZL2200 Single line Barcode Scanner

ZL2200 (1D) Single line Barcode Scanner is a cost-effective single-line laser USB Bar-code scanner with optimized performance from Youjie by Honeywell.

As an entry level bar code scanner targeting the low to middle segment of the AIDC markets, ZL2200 Barcode Scanner is ideal for various scanning applications like retail POS for small supermarkets and convenience stores, document scanning for office automation, and mail and parcels processing for post offices.

Features of ZL2200 Barcode Scanner

• Scan performance at an affordable price ratio: Highly cost effective, ideal for  small- to medium-sized enterprises

• Proprietary scanning platform : Revolutionary scanning platform design with pending intellectual property rights (IPR)

• Outstanding scanning performance : Provides faster scanning, larger depth of field, wider scanning angle and zero error rates.

• Ergonomic form factor design : Gun shape design comfortably fit in any hand size, reducing fatigue over long time use

• High compatibility : “Plug-and-play” with “no extra setting” enables quick integration with various office devices.

Mechanical data of ZL2200

• Dimensions (LxWxH) : 165mm x 65mm x 80mm

• Weight : 182g

Electrical Data of ZL2200

• Input Voltage : 5 VDC ± 0.25 V

• Power (typical) : 700mW (140 [email protected] 5V, standby)

• 1000mW (200 [email protected] 5V, decoding)

• Electro Magnetic Compatibility : EN55022 Class B

Environmental Data of ZL2200 Barcode Scanner

• Operating Temperature : 0°C - 40°C

• Storage Temperature : -40°C - 60°C

• Humidity : 5% to 95% relative humidity, non-condensing

• Light : 0 - 100,000LUX

• Drop : Designed to withstand 1m drops

• Environmental sealing: sealed to resist airborne particulate contaminants

Performance Data of ZL2200

• Light Source : Visible Laser Diode, 650 nm ± 10 nm

• Visual Indicators : Red= laser shines, ready to scan; Green= successfully decoding

• System Interface : USB,

• Scan Pattern : single line

• Scan Speed : 100 scan lines per second

• Scan Angle : horizontal 55°

• Print Contrast : 20% minimum reflectance difference

• Pitch, Skew : 68°, 52°

• Decode Capabilities : All standard 1D bar codes
