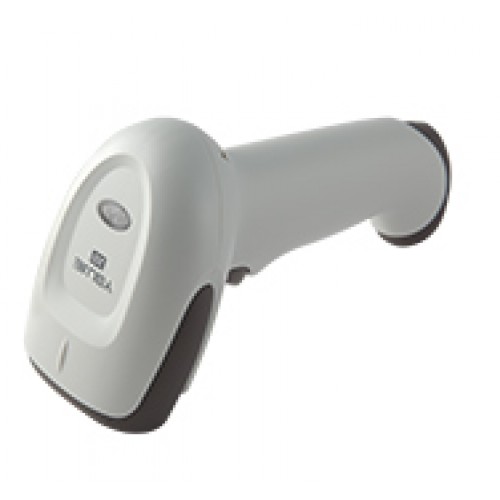

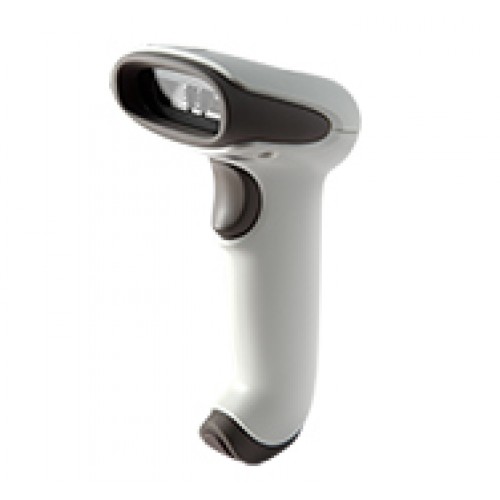

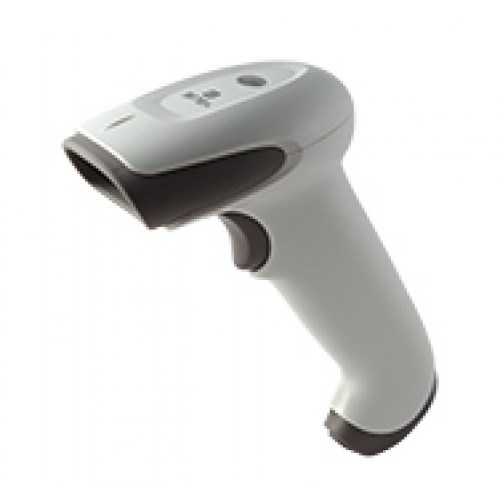

YJ4600 2D QR CODE & Barcode Scanner

Youjie by Honeywell YJ4600 2D Barcode and QR CODE Scanner is a general purpose area imaging scanner targeting low to middle segments of the 2D market.

With competitive pricing, outstanding performance, ergonomic design, and optimal functionality, it meets the demands of a wide variety of applications.

Features of YJ4600 Barcode Scanner

• Cost-effective : Competitive pricing, outstanding performance

• Compact, lightweight, user-friendly design : Fast and accurate scanning, elegant and ergonomic design allows for a natural and comfortable grip

• Versatile scanning modes : : Supports both manual and presentation scanning modes with automatic object detection and scanning

• Advanced decoding software : Cutting-edge decoding technology, able to scan both 1D and 2D barcodes quickly and accurately

• Reliable data capture ability : Supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)

• Future-proof investment : Protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs

Mechanical Data of YJ4600 QR CODE SCANNER

• Dimensions (length x width x height) : 170mm x 66mm x 85mm

• Weight : 120g

Electrical Data of YJ4600

• Input Voltage : 4 ~ 5.5 V DC

• Operating Power : 2W; 400 mA @ 5V - typical

• Standby Power : 0.45w, 90mA@ 5V - typical

• DC Power : Class2; 5.2VDC@1°

• EMC : EN55022, EN55024 class B

• LED Safety Certification : IEC62471

• CB : IEC60950

• Comprehensive Certification : GOST-R (Russia), CE

Environmental Data of YJ4600

• Operating Temperature : 0°C - 40°C

• Storage Temperature : -40°C - 60°C

• Humidity : 5% - 95% relative humidity, non-condensing

• Light Levels : 0 - 100,000LUX

• Drop : designed to withstand falls from a height of up to 1.0m

• Environmental Sealing : Sealed to resist airborne particulate contaminants

• IP Level : IP40

• Motion Tolerance : 100mm per second, 13 mil UPC

Performance Data of YJ4600

• Light Source : white LED

• Sight : Red LED, 617nm

• Visual Indicators : Green = decoding successful; Red = decoding failed

• System Interface : KBW, USB

• Scan Pattern : Image

• Scan Angle : Pitch ± 70 °, Tilt ± 60 °, Rotation ± 180 °

• Print Contrast : Minimum 35% contrast

• Decoding : supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)
