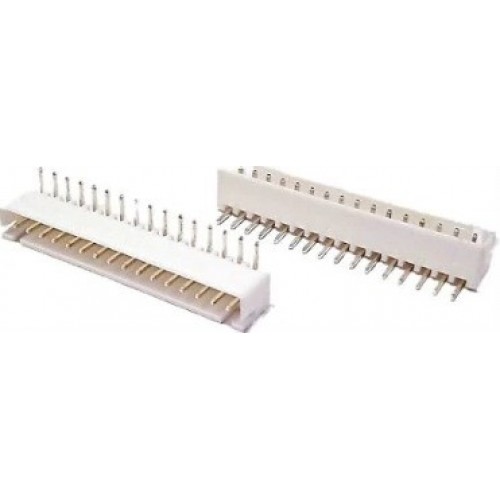

16 Pin 2.5mm JST PH Right Angle Male Connector

16 Pin 2.5mm JST PH Right Angle Male Connector

The 16-Pin 2.5mm JST PH Right Angle Male Connector is a compact, reliable wire-to-board connector designed for applications requiring multiple signal or power lines in a limited space. With a 2.5mm pitch and right-angle configuration, it facilitates horizontal PCB mounting, optimizing space in densely packed electronic assemblies. This connector is widely used in consumer electronics, industrial control systems, and prototyping projects, offering secure and efficient connections for sensors, displays, and power modules. Its design ensures easy mating and unmating , making it suitable for applications where frequent connections are necessary. The 16-pin configuration allows for versatile use in complex circuits, supporting both data and power transmission.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Compact Design: With a 2.5mm pitch, this connector is ideal for applications requiring space-saving solutions.

• Right-Angle Configuration: The side-entry, right-angle design allows for horizontal mounting on PCBs, facilitating streamlined layouts.

• Secure Connection: Designed to provide a reliable and stable connection, minimizing the risk of disconnection due to vibrations or movement.

• High Durability: Constructed with quality materials to ensure longevity and consistent performance.

• Versatility: Commonly used in battery connections, LED lighting systems, small electronic devices, and prototyping boards.

Specifications of 16 Pin 2.5mm JST PH Right Angle Male Connector

• Connector Series: JST PH

• Number of Pins: 16

• Pitch: 2.5 mm

• Mounting Type: Through-Hole, Right Angle

• Current Rating: Up to 3 A

• Operating Temperature Range: -25°C to +85°C

• Contact Resistance: 20 mΩ

• Material: Phosphor Bronze Contacts with Tin Plating

Applications of 16 Pin 2.5mm JST PH Right Angle Male Connector

• Consumer Electronics

• DIY Electronics and Prototyping

• Industrial Equipment

• Automotive Electronics

Package Includes

      1 x 16 Pin 2.5mm JST PH Right Angle Male Connector
