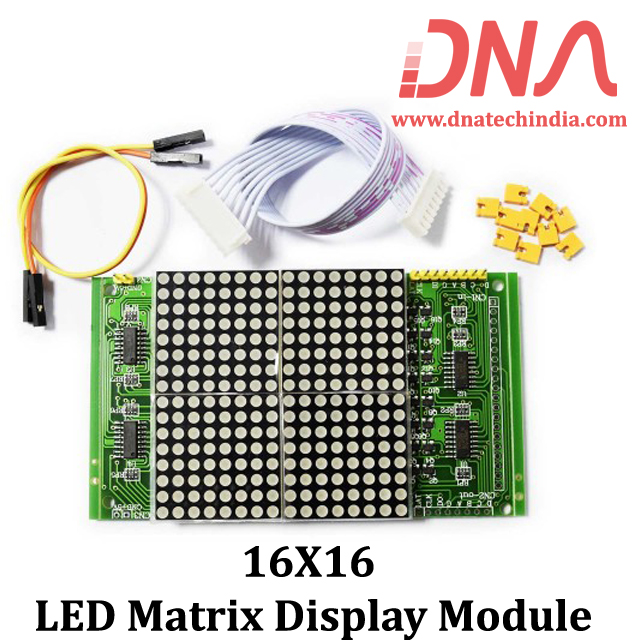

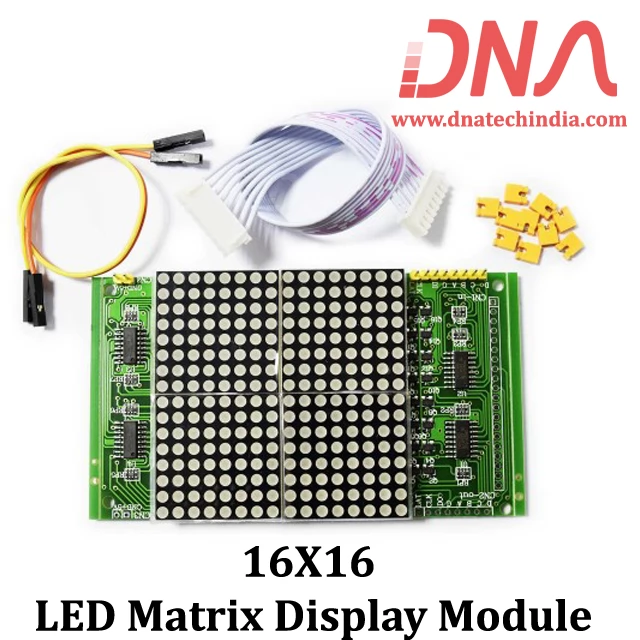

16X16 LED Matrix Display Module

Write a review | 2 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-03-21
Brand: Generic
SKU: 589 | DAA745

Rs. 885.00 (inc GST)
Rs.750.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

16X16 LED Matrix Display Module

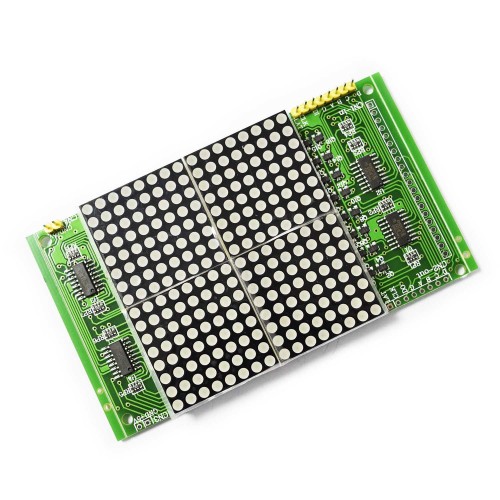

This 16×16 Display module uses the 74HC138 and 74HC595 to decode and drive 4 of 8×8 LED modules to create an even bigger 16×16 LED display module.

Detailed Demos based on Arduino help you understanding and learning how to use this module to integrate it to your own applications.

We have Various sizes of HMI Modules. Check out our complete collection of HMI Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 16X16 LED Matrix Display Module

16×16 LED Display
Color : Red
Support the 128×64 LCD Display
Cascadable; D_IN on the left, and D_OUT on the right, power supply on the bottom
The top pins are for the 12864 LED.
Each row controlled by two 74hc138, each column controlled by two 74hc595.

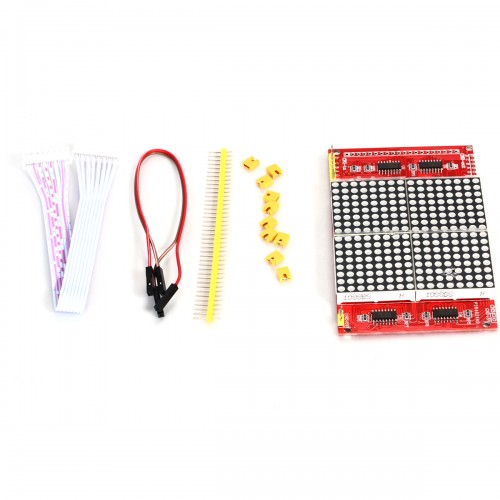

Package include:

1 x LCD16 x 16 Dot matrix module
1 x 8 PIN Male to Female cable
1 x 2 PIN Male to Female cable
1 x Output and Input Data Port Pin Header

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
