26 PIN FRC MALE BOX HEADER

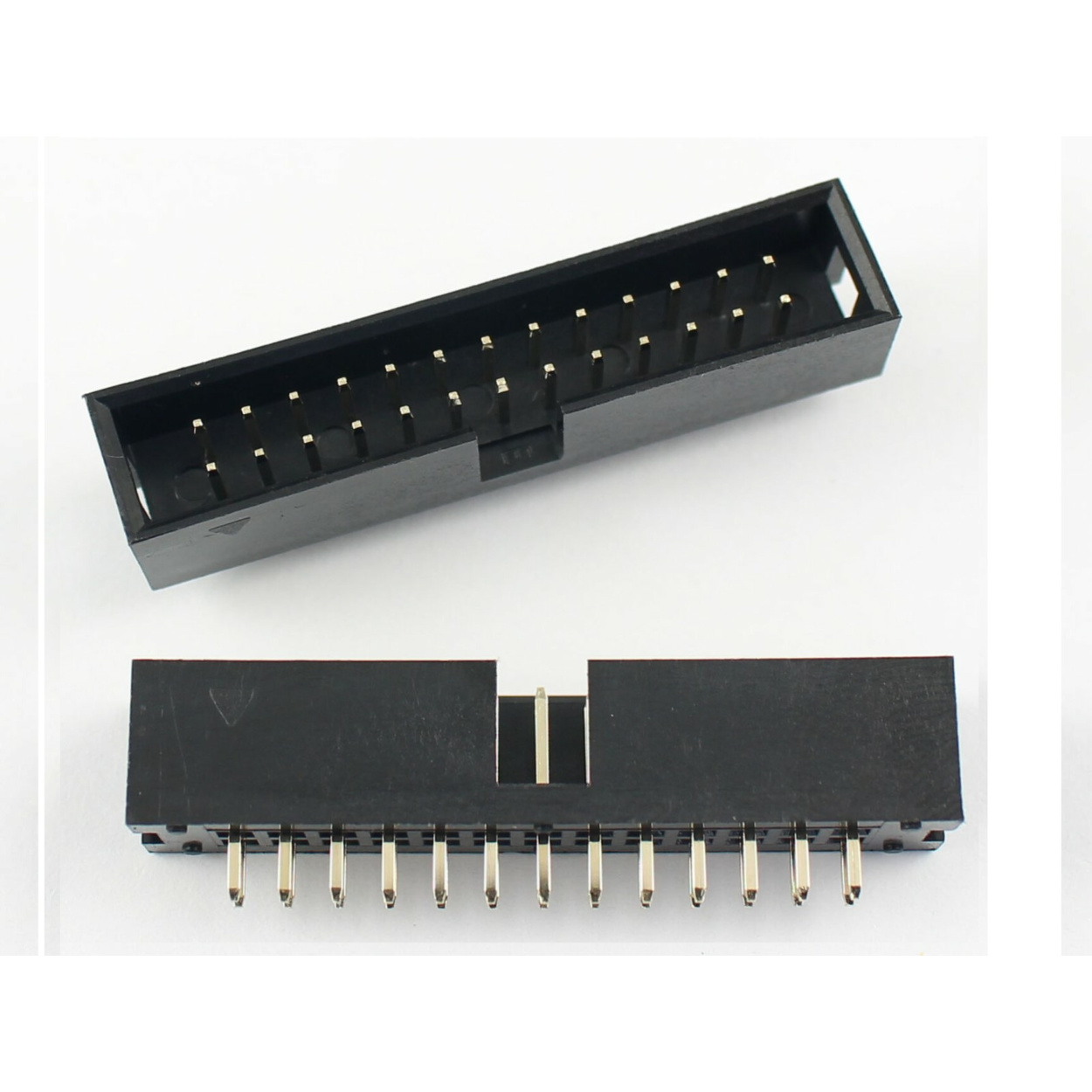

26 PIN FRC Male Box Header Connector

26-pin FRC male box header for flat ribbon cable; shrouded design; compatible with 1.27mm pitch cables.

The 26 PIN FRC Male Box Header Connector is designed for reliable connections in embedded systems and development boards. This connector features a boxed design with a key notch to ensure correct cable orientation. It supports standard 1.27mm pitch flat ribbon cables, making it ideal for board-to-cable or board-to-board connections in various applications. The durable plastic housing protects the contacts, ensuring long-lasting performance.

With a current rating of approximately 1 to 3 Amps per contact and an operating voltage of about 250V AC/DC, this connector meets the demands of industrial control panels and data acquisition systems. The gold or tin-plated contacts enhance conductivity and resist corrosion, making the 26 PIN FRC Male Box Header Connector a reliable choice for communication between PCBs or modules.

Explore the potential of the 26 PIN FRC Male Box Header Connector in programming and debugging ports. It is an essential component for anyone working in electronics, ensuring efficient and secure connections. Upgrade your projects with this high-quality connector today.

At DNA, we offer a wide range of connectors and cables, including the reliable Nashik brand. Explore our collection of Connectors and Cables to find the perfect fit for your needs. Check other "Connectors and Cables" that we have in stock.

If you are searching for specific electronic components, DNA can help. We can import parts not available in stock and support both retail and bulk orders. Consider related items like Microcontrollers, Programmers, Sensors, Digital ICs, and Analog ICs. Contact Us.

Features of 26 PIN FRC Male Box Header Connector

• 26-pin dual-row male header
• Boxed/shrouded design with key notch
• Compatible with standard 1.27mm pitch cables
• Available in through-hole or SMD mounting styles
• Durable plastic housing
• Gold or tin-plated contacts for improved conductivity

Specification of 26 PIN FRC Male Box Header Connector

• Number of Pins: 26
• Contact Pitch: 2.54 mm
• Mounting Type: Through-Hole / SMD
• Gender: Male
• Housing Type: Boxed / Shrouded
• Current Rating: ~1 to 3 Amps per contact
• Operating Voltage: ~250V AC/DC

Applications of 26 PIN FRC Male Box Header Connector

• Embedded systems
• Development boards
• Industrial control panels
• Data acquisition systems
• Communication between PCBs

Package Includes

• 1 X 26 PIN FRC Male Box Header Connector
