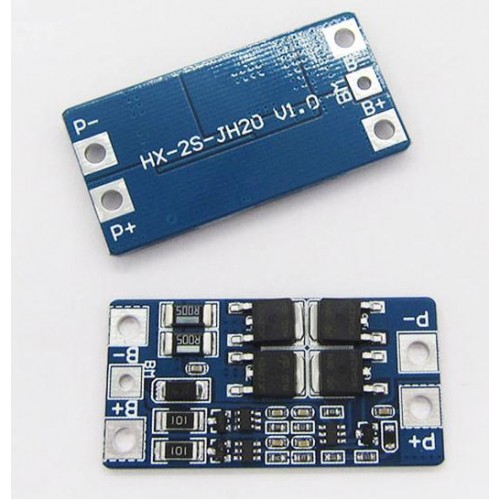

BMS charge discharge controller HX-2S-JH20 Module

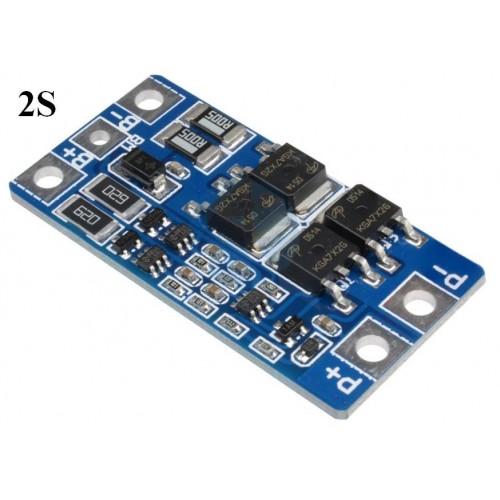

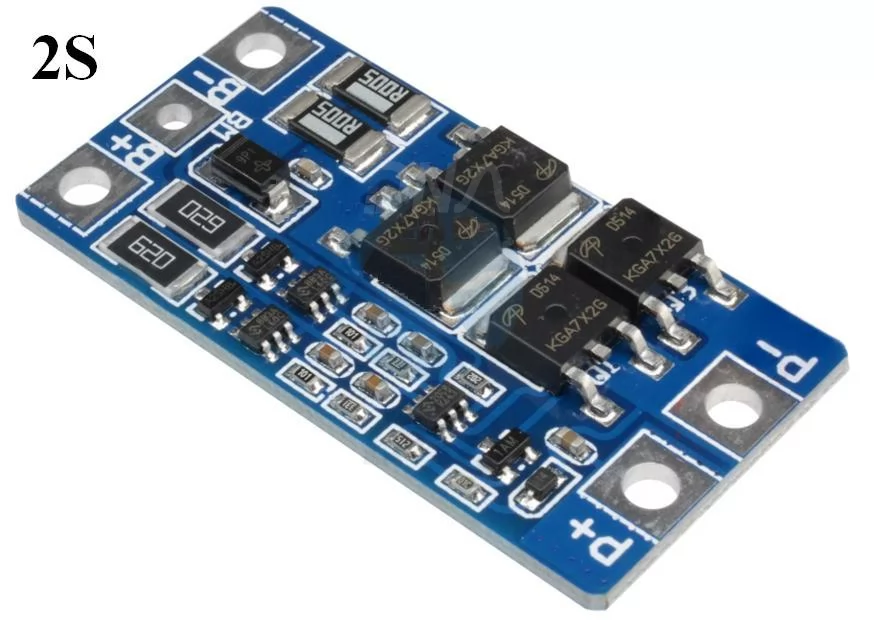

2S Li-Ion BMS HX-2S-JH20 Module

Specifications of BMS charge discharge controller HX-2S-JH20 Module

• Overcharge voltage range : 4.25-4.35v ± 0.05v

• Upper working current : 10A

• Upper limit instantaneous current : 20A

• Quiescent current : less than 10uA

• Internal resistance : less than 300mΩ

• Operating temperature : -40 --- +50 °C

• Storage conditions : -40 -- +80 °C

• Effective life : more than 50,000 hours

• Short circuit protection : can be protected, need to charge recovery

• Charging voltage : 8.4V-9V

Welding point Description:

• B + connected to the battery positive

• B - connected battery negative

• MB connects the battery 1 to the connection point before the battery

• P + connected to the charge / discharge side of the positive (charge side / discharge side shared)

• P - connect / discharge terminal negative (shared with charge / discharge).
