• 2K 3590 Multiturn Potentiometer

Product Images are shown for illustrative purposes only and may differ from actual product.

2K 3590 Multiturn Potentiometer

  • Stock: 3
  • SKU: 8249 | DAH417

Availability: InStock priceValidUntil: 2025-09-20

  • Rs. 132.75 (inc GST)
    Rs.112.50 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

2K 3590 Multiturn Potentiometer

2K 3590 Multiturn Potentiometer

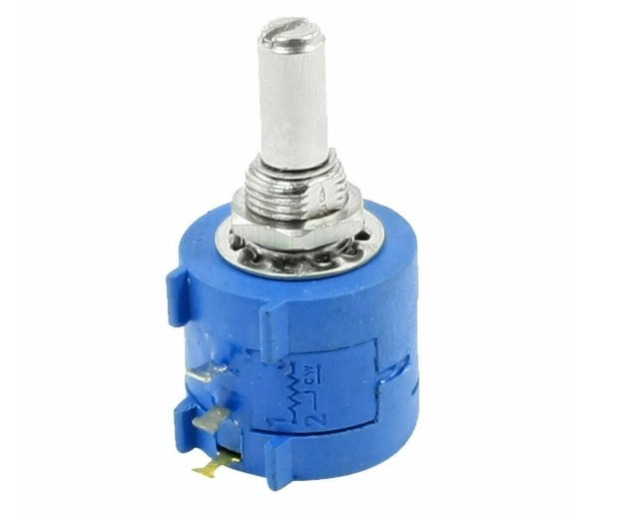

The 3590 series multiturn potentiometer is a high-precision wire-wound variable resistor. It provides better resolution and stability compared to standard single-turn potentiometers. The 2K ohm (2,000 ohms) resistance value makes it suitable for various electronic applications. It has a rotary design with a shaft and knob, allowing multiple turns (typically 10) to achieve fine-tuned resistance adjustments. The device is usually enclosed in a metal or plastic housing for durability.

DNA solutions, Nashik has various types of Potentiometer's. Check out our complete collection of Potentiometer's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 2K 3590 Multiturn Potentiometer

  • High Precision & Stability: Provides fine control over resistance with high resolution
  • 10-Turn Design: Allows precise tuning for applications requiring gradual adjustments
  • Wire-Wound Construction: Ensures durability and long lifespan
  • High Linearity: Delivers accurate and repeatable resistance changes
  • Long-Life Operation: Typically rated for 1,000,000+ rotations
  • Compact Size: Fits into various electronic and industrial control systems
  • Dust-Proof & Sealed Versions Available: Protection against environmental contaminants

Specifications of 2K 3590 Multiturn Potentiometer

  • Resistance: 2KΩ (2000 ohms)
  • Type: Multiturn (10-turn) Wire-wound Potentiometer
  • Power Rating: Typically 2W (varies by model)
  • Tolerance: ±5% (standard)
  • Linearity: ±0.25% (high precision)
  • Shaft Diameter: 6.35 mm (¼ inch)
  • Shaft Length: Varies (e.g., 20mm)
  • Mounting Type: Panel Mount / PCB Mount

Applications of 2K 3590 Multiturn Potentiometer

  • Voltage and Current Regulation
  • Signal Processing & Gain Control
  • Calibration & Instrumentation
  • Analog Input Control
  • Educational & Research Projects

    Package Includes

          1 x 2K 3590 Multiturn Potentiometer

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
