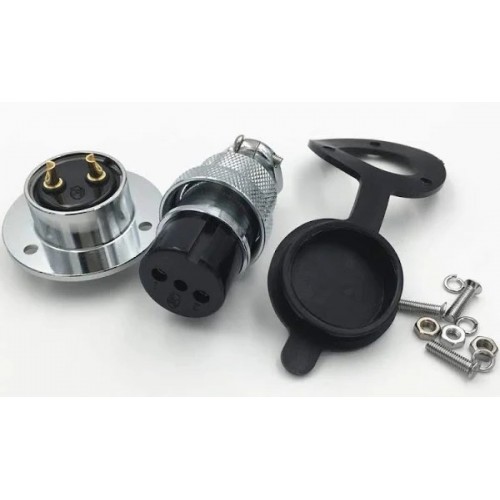

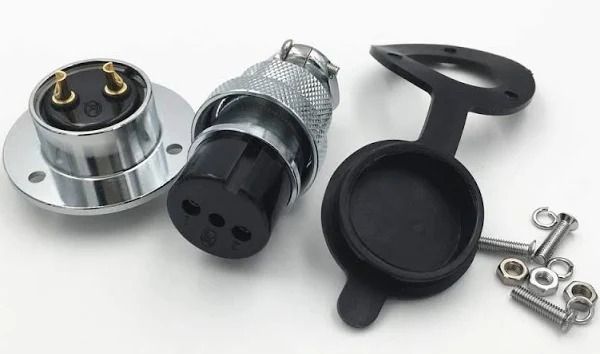

2PIN GX25 Panel Mounting Connector with flange (Male + Female)

2PIN GX25 Panel Mounting Connector with flange (Male + Female)

The GX25 2-pin connector is part of the GX series of circular connectors, specifically designed for panel mounting with a flange for secure attachment. It is commonly used in industrial equipment, robotics, machinery, and outdoor environments where durability and strong electrical connections are required. The connector features a threaded locking mechanism, which provides a secure and vibration-resistant connection between the male and female components.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• 2-Pin Design: Designed for carrying power or signal connections, perfect for simple two-wire connections.


• Panel Mounting with Flange: The connector includes a front flange with screw holes, making it easy to mount on panels or enclosures securely.


• Threaded Coupling Mechanism: A screw-lock design ensures the connector stays firmly in place, even in environments with vibration or mechanical stress.


• Metal Body: The metal shell provides ruggedness and protects against physical damage, corrosion, and electromagnetic interference (EMI).


• High Current and Voltage Rating: Capable of handling higher power loads compared to smaller connectors, suitable for industrial applications.


• IP Rating: Typically IP44 (splash-proof), providing protection against moisture and dust.


Specifications of 2PIN GX25 Panel Mounting Connector with flange (Male + Female)

• Number of Pins: 2 pins (Male and Female pair)


• Connector Diameter (Outer): 25 mm (GX25 standard size)


• Current Rating: Typically 10A or more (depending on wire gauge and application)


• Voltage Rating: 250V AC/DC


• Pin Diameter: 3.0 mm (approx.)


• Shell Material: Nickel-plated brass or zinc alloy for corrosion resistance and durability


• Contact Material: Copper alloy with silver plating for superior conductivity


Package Includes

• 1 x 2PIN GX25 Panel Mounting Connector with flange (Male + Female)
