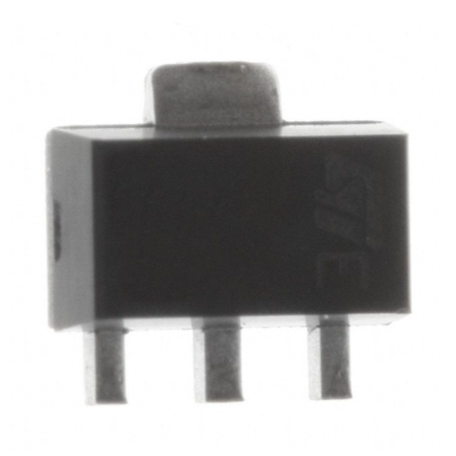

Product Images are shown for illustrative purposes only and may differ from actual product.

2SA1020G-Y-AB3-R PNP TRANSISTOR

Write a review | 1 reviews

Stock: 20
Availability: InStock priceValidUntil: 2026-08-28
SKU: 9947 | DAI623

Rs. 20.36 (inc GST)
Rs.17.25 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

2SA1020G-Y-AB3-R PNP Transistor for Amplification

2SA1020G-Y-AB3-R PNP Transistor offers high current gain, low saturation voltage, and compact TO-92 package for easy mounting.

The 2SA1020G-Y-AB3-R PNP Transistor is designed for general-purpose applications, particularly in audio frequency amplification and switching. It features a high current gain and low collector-emitter saturation voltage, making it suitable for various analog circuits. The compact TO-92 package allows for easy integration into through-hole PCB designs, ensuring compatibility across consumer and industrial devices.

With its wide frequency response, the 2SA1020G-Y-AB3-R PNP Transistor performs well in low-frequency signal processing and general-purpose switching applications. This transistor is ideal for audio frequency amplifier circuits, control circuits, and consumer electronics, supporting a range of electronic projects.

For those seeking reliable performance in their electronic designs, the 2SA1020G-Y-AB3-R PNP Transistor stands out for its efficiency and versatility. It is a solid choice for anyone working with analog electronics, ensuring high-quality signal processing.

Explore the world of Diodes & Transistors at DNA. The 2SA1020G-Y-AB3-R PNP Transistor is essential for reliable electronic projects. Check other Diodes & Transistors that we have in stock.

If you need specific electronic components, DNA is here to help. We support retail and bulk orders, and can even import items if they're not readily available. Don't hesitate to ask about related components like Power Supply, HMI Display, Digital IC, IGBT, Crystal, DC to DC Converter IC. Contact Us.

Features of 2SA1020G-Y-AB3-R PNP Transistor

General-purpose PNP transistor
High DC current gain
Low collector-emitter saturation voltage
Wide frequency response
Compact TO-92 package
Suitable for signal amplification and switching

Specification of 2SA1020G-Y-AB3-R PNP Transistor

Transistor type: PNP
Collector-emitter voltage: -50V
Collector-base voltage: -60V
Emitter-base voltage: -5V
Collector current: -150mA
Power dissipation: 400mW

Applications of 2SA1020G-Y-AB3-R PNP Transistor

Audio frequency amplifier circuits
Low-frequency signal processing
General-purpose switching applications
Analog interface and control circuits
Consumer electronics and home appliances

Package Includes

1 X 2SA1020G-Y-AB3-R PNP Transistor

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
