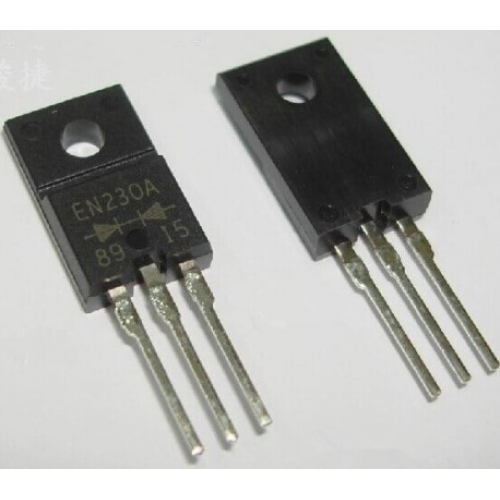

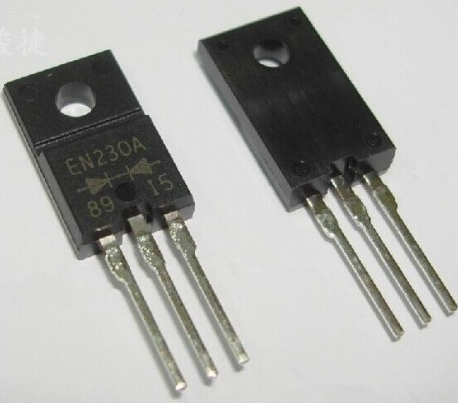

EN230A Schottky Barrier Diode (TO-220F)

EN230A Schottky Barrier Diode for Power Rectification

EN230A Schottky Barrier Diode; High-efficiency, 30A current, 100V peak reverse voltage.

The EN230A Schottky Barrier Diode is ideal for efficient power conversion in switch-mode power supplies and DC output stages. With a repetitive peak reverse voltage of 100V and a forward current capability of 30A, this diode ensures low forward voltage drop and fast recovery performance, minimizing power loss. The insulated TO-220F package enhances safety and thermal management, making it suitable for various applications.

Engineered for robust performance, the EN230A Schottky Barrier Diode excels in high-current freewheeling and reverse polarity protection. Its average forward current of 30A allows it to effectively handle demanding power requirements. This diode is a reliable choice for those seeking durability and efficiency in their electronic components.

Explore the advantages of the EN230A Schottky Barrier Diode for your electronic projects. Whether you are working on a switch-mode power supply or need a dependable rectifier, this diode meets your needs with exceptional reliability.

At DNA, we provide a wide range of high-quality electronic components, including the EN230A Schottky Barrier Diode. Explore our collection in the Diodes & Transistors category for reliable solutions. Check other "Diodes & Transistors" that we have in stock.

If you're searching for specific electronic components, reach out to us. We can help you find parts like SMPS, Crystal, MOSFET, Development Module, Sensor Module, and HMI Display. We also support retail and bulk orders, and can import items if they're not available. Contact Us.

Features of EN230A Schottky Barrier Diode

• High-current Schottky Barrier Diode
• Low forward voltage drop
• Fast recovery characteristics
• High repetitive peak reverse voltage of 100V
• Average forward current capability: 30A
• Insulated TO-220F package

Specification of EN230A Schottky Barrier Diode

• Device Type: Schottky Barrier Diode
• Repetitive Peak Reverse Voltage (VRRM): 100V
• Average Forward Current (IO): 30A
• Forward Voltage (VF): 0.62V type, 0.76V max (IF=15A)
• Reverse Current (IR): 5mA max (VR=100V)
• Thermal Resistance Junction-to-Case (RthJC): 2.0 °C/W
• Junction Temperature (Tj): 150 °C max
• Package: TO-220F

Applications of EN230A Schottky Barrier Diode

• Switch-mode power supply rectification
• DC output stages
• High-current freewheeling diode
• Reverse polarity protection

Related Links for EN230A Schottky Barrier Diode for Power Rectification

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X EN230A Schottky Barrier Diode
