2SA1163-GR PNP Bipolar Transistor


Write a review | 2 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-02-18

  • SKU: 7350 | DAG173

Availability: NotInStock priceValidUntil: 2026-02-18

  • Rs. 20.06 (inc GST)
    Rs.17.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

2SA1163-GR PNP Bipolar Transistor

2SA1163-GR PNP Bipolar Transistor

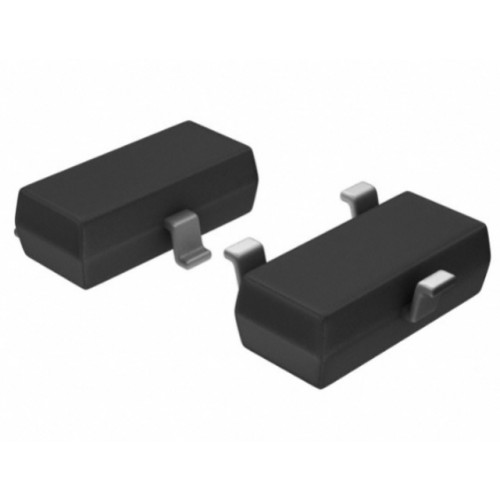

The 2SA1163 GR Transistor is a small signal PNP transistor with low noise characteristics, making it ideal for audio amplification and signal processing tasks. It is manufactured using silicon epitaxial planar technology, ensuring reliability and consistent performance. This transistor comes in a compact SOT-23 package, which is ideal for space-constrained designs.

DNA solutions, Nashik has various types of  Transistor's. Check out our complete collection of  Transistor's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 2SA1163-GR PNP Bipolar Transistor

  • Low noise figure, suitable for audio applications.
  • High current gain with the GR grade for consistent performance.
  • Low saturation voltage.
  • Excellent linearity.
  • High reliability with silicon epitaxial planar construction.
  • Compact package for easy integration into circuits.

Specifications of 2SA1163-GR PNP Bipolar Transistor

  • Type: PNP Bipolar Transistor
  • Collector-Emitter Voltage (V<sub>CEO</sub>): -50 V
  • Collector-Base Voltage (V<sub>CBO</sub>): -60 V
  • Emitter-Base Voltage (V<sub>EBO</sub>): -5 V
  • Collector Current (I<sub>C</sub>): -150 mA
  • Collector Power Dissipation (P<sub>C</sub>): 200 mW
  • DC Current Gain (h<sub>FE</sub>): 200 to 400 (GR grade)

    Package Includes

    • 1 x 2SA1163-GR PNP Bipolar Transistor

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
