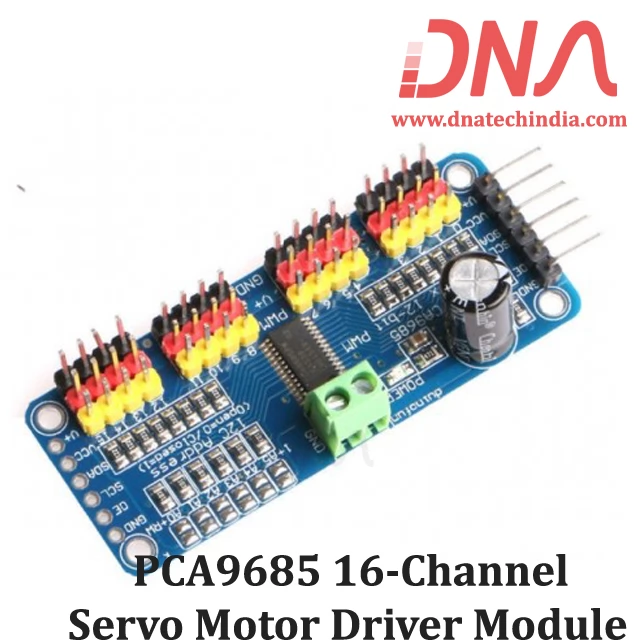

PCA9685 16-Channel Servo Motor Driver Module

  • Stock: 2
  • SKU: 1612 | DAB054
  • Rs. 602.98 (inc GST)
    Rs.511.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PCA9685 16-Channel Servo Motor Driver Module

PCA9685 16-Channel 12-bit PWM Servo Motor Driver I2C Module

PCA9685 module is a 16 Channel Servo Motor Driver. It is used to control upto 16 servo motors with just two pins of the Arduino, Raspberry Pi or any other microcontroller with I2C. Controlling the servos is simple and easy. Servos can be plugged in directly to the board with no additional circuits or connectors required. This board is great for building humanoids, bipeds, hexapods, rc quadcopters and planes, etc. is a 16 Channel Servo Motor Driver.

We have Various sizes of IO Expansion and Opto-Isolator Modules. Check out our complete collection of IO Expansion and Opto-Isolator Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

  • This board/chip uses I2C 7-bit address between 0x60-0x80, selectable with jumpers
  • Terminal block for power input (or you can use the 0.1" breakouts on the side)
  • Reverse polarity protection on the terminal block input
  • Green power-good LED
  • 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header
  • "Chain-able" design
  • A spot to place a big capacitor on the V+ line (in case you need it)
  • 220 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
  • Solder jumpers for the 6 address select pins
  • i2c-controlled PWM driver with a built in clock. Unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
  • It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
  • 6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs
  • Adjustable frequency PWM up to about 1.6 KHz
  • 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
  • Configurable push-pull or open-drain output
  • Output enable pin to quickly disable all the outputs

Package included

  • 1 x PCA9685 16-Channel 12-bit PWM Servo Motor Driver I2C Module For Arduino Robot
