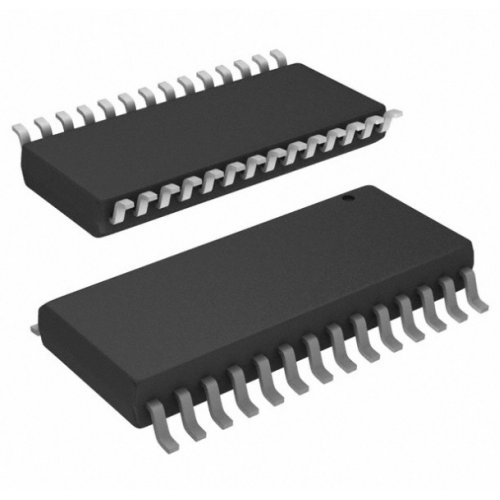

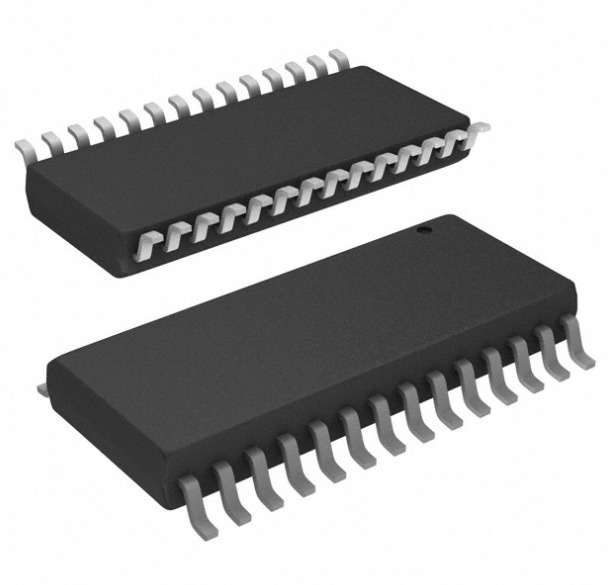

ATM90E26 Single Phase Energy Metering SMD IC

ATM90E26 Single Phase Energy Metering SMD IC

The ATM90E26 Single Phase Energy Metering SMD IC is a high-performance metering IC designed for single-phase applications. It integrates active, reactive, and apparent energy measurement with high accuracy and supports UART or SPI communication interfaces. This IC is ideal for smart energy meters and energy monitoring systems.

DNA Solutions, Nashik offers a variety of metering ICs, ideal for energy monitoring projects. Explore more at Energy Metering IC Modules.

Features of ATM90E26 Single Phase Energy Metering SMD IC

• High accuracy energy measurement: active, reactive, and apparent

• Supports both SPI and UART communication interfaces

• Inbuilt voltage and current RMS measurement

• Low power consumption and wide voltage operation

• On-chip oscillator and temperature sensor

Specifications of ATM90E26 Single Phase Energy Metering SMD IC

• Type: Single phase metering IC

• Interfaces: UART, SPI

• Operating Voltage: 3.3V

• Package: QFN-28 (SMD)

• On-chip voltage reference: 1.2V ±1%

Applications of ATM90E26 Single Phase Energy Metering SMD IC

• Smart energy meters

• IoT-based power monitoring systems

• Power analyzers and meters

• Load management systems

Package Includes

      1 x ATM90E26 Single Phase Energy Metering SMD IC
