Product Images are shown for illustrative purposes only and may differ from actual product.

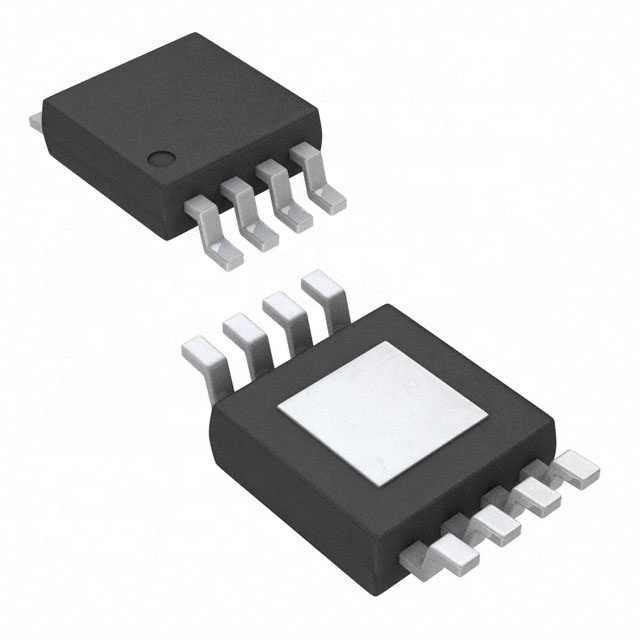

FP6276B PWM Boost Converter SMD IC


Write a review | 1 reviews

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-10-10

  • SKU: 9356 | DAC798

Availability: InStock priceValidUntil: 2026-10-10

  • Rs. 49.32 (inc GST)
    Rs.41.80 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

FP6276B PWM Boost Converter SMD IC

FP6276B PWM Boost Converter SMD IC with current mode control, max output voltage 5.3V, and soft-start function.

The FP6276B PWM Boost Converter SMD IC is a current mode boost DC-DC converter designed for high efficiency. It features PWM/PSM control, which enhances power management in handheld devices and portable products. With a maximum output voltage of 5.3V and a current output capability of up to 6A, this IC is ideal for power banks and chargers. The internal soft-start function minimizes inrush current, ensuring reliable operation.

This FP6276B PWM Boost Converter SMD IC also includes a built-in 40mΩ high-side switch and 40mΩ low-side switch, contributing to its high power efficiency. The internal compensation network reduces the need for external components, simplifying your design. With a switching frequency of 500kHz, it provides stable performance for various applications.

Designed for applications such as chargers, handheld devices, and portable products, the FP6276B PWM Boost Converter SMD IC meets the demands of modern electronics. Its features make it a trustworthy choice for those looking for reliability and efficiency in their power management solutions.

Explore the range of DC to DC Converter Modules at DNA. The FP6276B PWM Boost Converter SMD IC offers exceptional performance for your power management needs. Check other "DC to DC Converter Modules" that we have in stock.

At DNA, we cater to Indian electronics buyers looking for various components. If you can't find specific parts like MOSFETs, Diodes, or Transistors, reach out to us. We can import items not in stock and support both retail and bulk orders. Contact Us.

Features of FP6276B PWM Boost Converter SMD IC

  • Current mode with PWM/PSM control
  • Shutdown current: <1µA
  • Internal soft-start: 7ms
  • Cycle-by-cycle current limit
  • Internal compensation

Specification of FP6276B PWM Boost Converter SMD IC

  • Input Voltage Range: 2.4V to 4.5V
  • Maximum Output Voltage: 5.3V
  • Switching Frequency: 500kHz
  • Output Current: Up to 6A
  • High-Side Switch On-Resistance: 40mΩ
  • Reference Voltage: 0.6V ±2%
  • Soft-Start Time: 7ms
  • Protections: OTP, OCP, SCP

Applications of FP6276B PWM Boost Converter SMD IC

  • Chargers
  • Handheld Devices
  • Portable Products
  • Power Bank

Package Includes

  • 1 X FP6276B PWM Boost Converter SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
