• SS34 SMA Schottky Diode

Product Images are shown for illustrative purposes only and may differ from actual product.

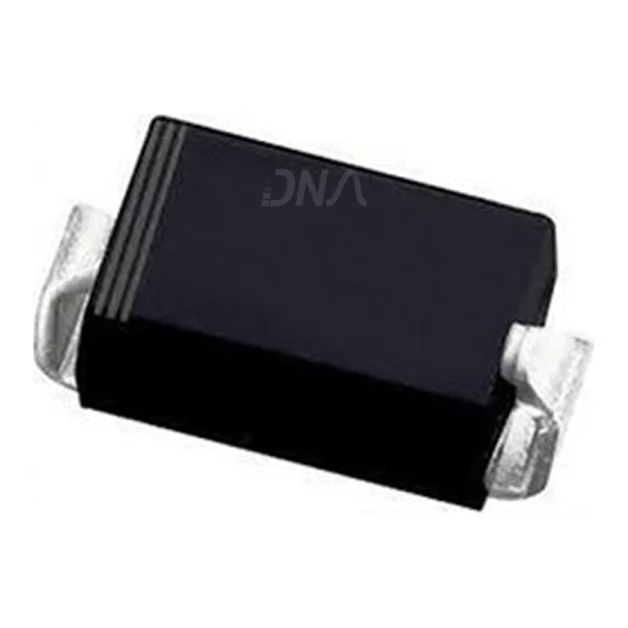

SS34 SMA Schottky Diode

  • Stock: 1
  • SKU: 1081 | DAB679
  • Rs. 7.08 (inc GST)
    Rs.6.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

SS34 SMA Schottky Diode


SS34 is a Surface Mount Schottky Barrier Rectifier.

It is suitable for use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications.

We have various types of Diode. Check our complete collection of Diode

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SS34 SMA Schottky Diode

  • Maximum repetitive peak reverse voltage, VRRM : 40V;

  • Maximum RMS voltage, VRMS : 28V;

  • Maximum DC blocking voltage, VDC : 40V;

  • Maximum average forward rectified current at TL, IF(AV) : 3.0A;

  • Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM : 100A;

  • Non-repetitive avalanche energy at TA = 25℃, IAS = 2.0A, L = 10mH ,EAS : 20mJ;

  • Voltage rate of change (rated VR), dv/dt : 10 000V/μs ;

  • Operating junction temperature range, T: - 55 to + 125℃;

  • Storage temperature range, TSTG : - 55 to + 150℃.

  • Low profile package;

  • Ideal for automated placement;

  • Guarding for over-voltage protection;

  • Low power losses, high efficiency;

  • Low forward voltage drop;

  • High surge capability;

  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃ Solder dip 260℃, 40 s; Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Applications of SS34 SMA Schottky Diode


SS34 Schottky Diode use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

Related Link

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
