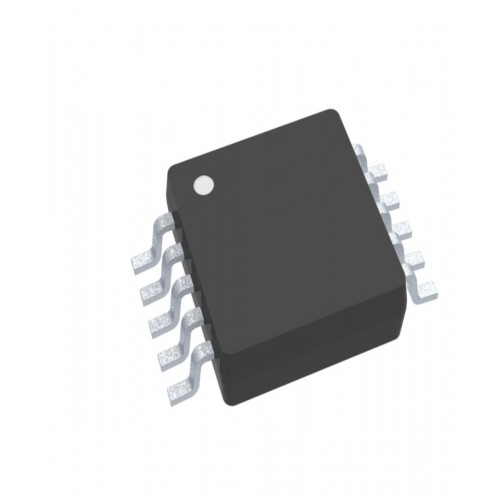

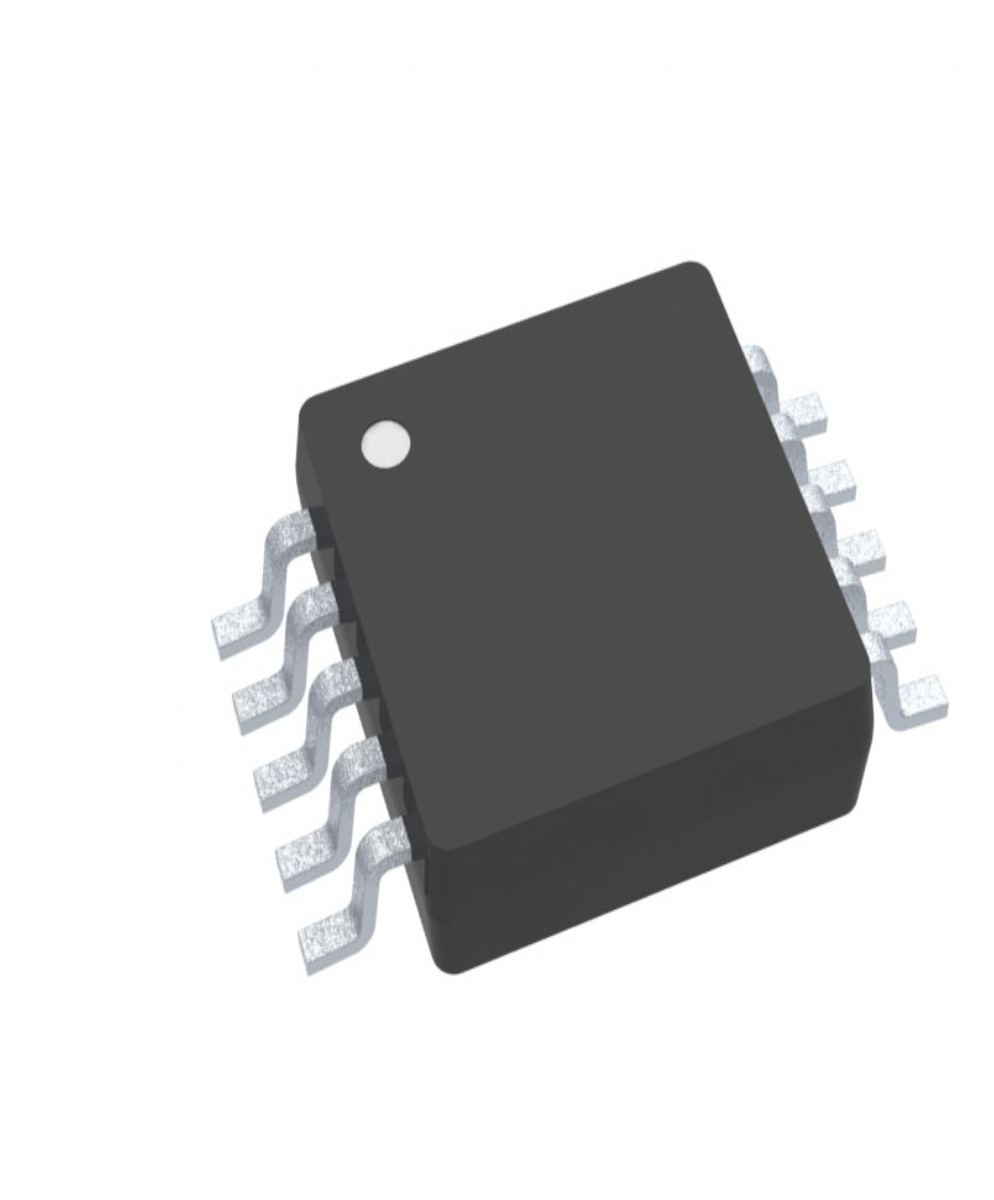

ADS1115IDGSR Analog to Digital Converters - ADC 16Bit SMD IC

ADS1115IDGSR Analog to Digital Converters (ADC IC)

ADS1115IDGSR 16-bit ADC with I2C interface, low power, and programmable gain amplifier.

The ADS1115IDGSR Analog to Digital Converters (ADC IC) is a compact, low-power device designed for precise analog-to-digital conversion. It features a programmable gain amplifier and a multiplexer, allowing for flexible input configurations including four single-ended or two differential channels. With a resolution of 16 bits, it ensures accurate measurements in various applications.

This ADS1115IDGSR Analog to Digital Converters (ADC IC) operates over a wide supply voltage range of 2.0V to 5.5V and supports data rates from 8 SPS to 860 SPS. Its I2C interface simplifies integration with numerous microcontrollers. Ideal for battery-powered devices, it combines high performance with low power consumption, making it suitable for portable applications.

Applications for the ADS1115IDGSR Analog to Digital Converters (ADC IC) include data acquisition systems, sensor interfacing, and low-power measurement devices. Explore the potential of this versatile ADC for your projects and enhance your electronic designs with reliable performance.

Explore the precision of ADC & DAC with DNA solutions. The Texas Instruments brand offers reliable components for your needs. Check other "ADC & DAC" that we have in stock.

If you're seeking specific electronic components, reach out to us. We can help you find parts or import them if necessary. We support retail and bulk orders. Check out related items like Nextion Display, Microcontroller, Hongfa Relay, Transistor, DC to DC Converter IC, and Crystal. Contact Us.

Features of ADS1115IDGSR Analog to Digital Converters (ADC IC)

• 16-bit resolution
• Low power consumption
• Programmable gain amplifier (PGA)
• Integrated multiplexer (MUX)
• I2C interface
• Internal oscillator
• Programmable data rates from 8 SPS to 860 SPS

Specification of ADS1115IDGSR Analog to Digital Converters (ADC IC)

• Resolution: 16 bits
• Input Type: Differential or single-ended
• Sampling Rate: 8 SPS to 860 SPS (selectable)
• Supply Voltage (VDD): 2.0V to 5.5V
• Common-mode Rejection Ratio (CMRR): 100 dB
• Noise Performance: Low noise at high resolution
• Operating Temperature Range: -40°C to +125°C

Applications of ADS1115IDGSR Analog to Digital Converters (ADC IC)

• Data acquisition systems
• Sensor interfacing
• Low-power measurement devices
• Battery-powered applications
• Portable electronic devices

Package Includes

• 1 X ADS1115IDGSR Analog to Digital Converters (ADC IC)
