Product Images are shown for illustrative purposes only and may differ from actual product.

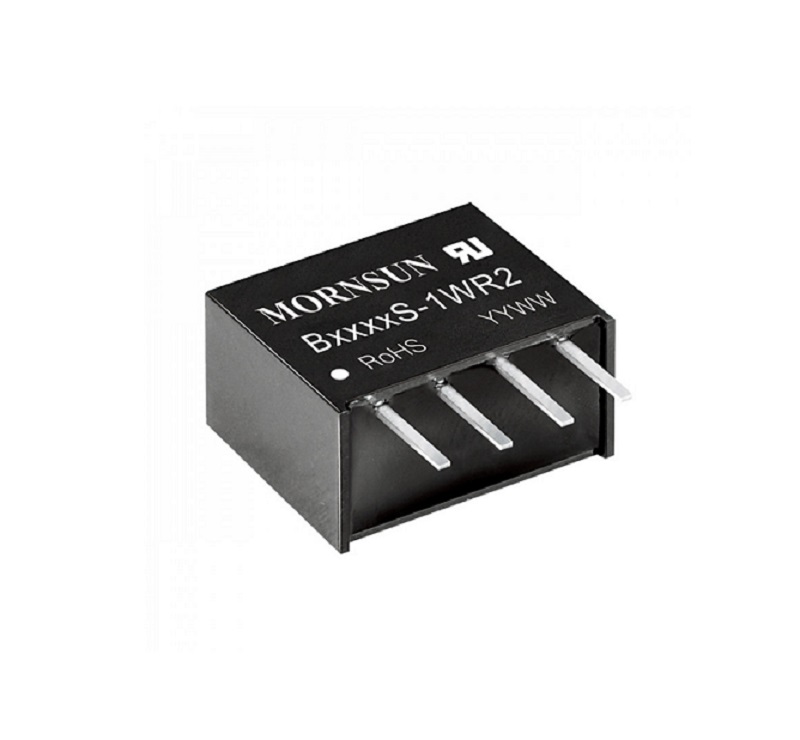

MORNSUN B2424S-1WR2 1 W Isolated DC/DC Converter Module

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-20

  • Brand: Mornsun
  • SKU: 7516 | DAE466

Availability: NotInStock priceValidUntil: 2026-12-20

  • Rs. 254.88 (inc GST)
    Rs.216.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MORNSUN B2424S-1WR2 1 W Isolated DC/DC Converter Module

MORNSUN B2424S-1WR2 1 W isolated DC/DC converter with 21.6–26.4 VDC input, 24 VDC output and 1500 VDC isolation.

The MORNSUN B2424S-1WR2 is a 1 W isolated DC/DC converter module. It accepts a 24 VDC nominal input and provides one unregulated 24 VDC output. This module suits designs that need a separate DC power rail.
Its input-to-output isolation helps separate the input and output sides of a circuit. The four-pin SIP package supports compact board layouts. The output current is rated up to 42 mA, and the module needs at least 10% of its rated output load.
Use this module in distributed power supply systems, pure digital circuits, low-frequency analog circuits, relay-driven circuits and data switching circuits. Its wide operating temperature range supports use across varied ambient conditions, with output derating above 85°C.
DNA supplies Mornsun modules for electronics design and repair across India. Browse our DC to DC Converter Modules to find parts for your power needs. Check other DC to DC Converter Modules that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders in India. We can also help you find items such as Diodes, Analog ICs and DC to DC Converter ICs. Contact Us

Features of MORNSUN B2424S-1WR2 1 W Isolated DC/DC Converter Module

  • Input-to-output isolation
  • Single unregulated output
  • Compact four-pin SIP design
  • Short-circuit protection with supply disconnection required after the protection interval

Specifications of MORNSUN B2424S-1WR2 1 W Isolated DC/DC Converter Module

  • Rated output power: 1 W
  • Input voltage range: 21.6–26.4 VDC
  • Output voltage: 24 VDC
  • Output current: 4 mA minimum, 42 mA maximum
  • Input-to-output isolation test voltage: 1500 VDC minimum for 1 minute
  • Operating ambient temperature: -40°C to +105°C, with output derating above 85°C
  • Package: Four-pin SIP
  • Short-circuit duration: 1 s maximum

Applications of MORNSUN B2424S-1WR2 1 W Isolated DC/DC Converter Module

  • Distributed power supply systems
  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven circuits

Related Links for MORNSUN B2424S-1WR2 1 W Isolated DC/DC Converter Module

Package Includes

  • 1 X MORNSUN B2424S-1WR2 1 W Isolated DC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
