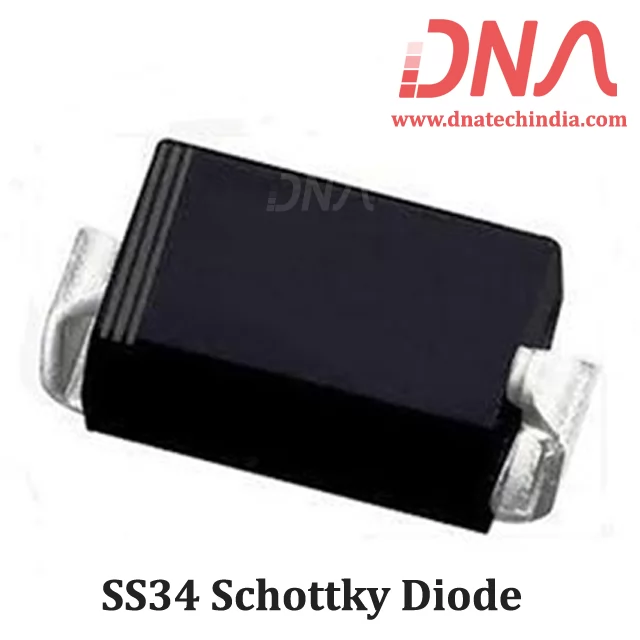

SS34 SMA Schottky Diode

Write a review | 1 reviews

Stock: 10
Availability: InStock priceValidUntil: 2026-09-30
SKU: 1081 | DAB679

Rs. 7.08 (inc GST)
Rs.6.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

SS34 SMA Schottky Diode

SS34 is a Surface Mount Schottky Barrier Rectifier.

It is suitable for use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications.

We have various types of Diode. Check our complete collection of Diode

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SS34 SMA Schottky Diode

Maximum repetitive peak reverse voltage, V_RRM: 40V;
Maximum RMS voltage, V_RMS: 28V;
Maximum DC blocking voltage, V_DC: 40V;
Maximum average forward rectified current at TL, IF(AV) : 3.0A;
Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM : 100A;
Non-repetitive avalanche energy at T_A= 25℃, I_AS= 2.0A, L = 10mH ,EAS : 20mJ;
Voltage rate of change (rated VR), dv/dt : 10 000V/μs ;
Operating junction temperature range, T_J: - 55 to + 125℃;
Storage temperature range, T_STG: - 55 to + 150℃.
Low profile package;
Ideal for automated placement;
Guarding for over-voltage protection;
Low power losses, high efficiency;
Low forward voltage drop;
High surge capability;
Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃ Solder dip 260℃, 40 s; Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Applications of SS34 SMA Schottky Diode

SS34 Schottky Diode use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
