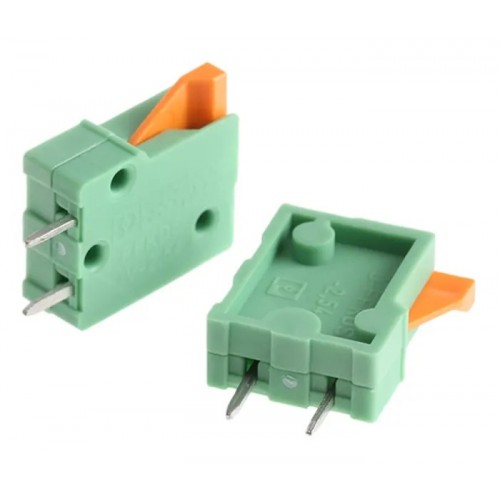

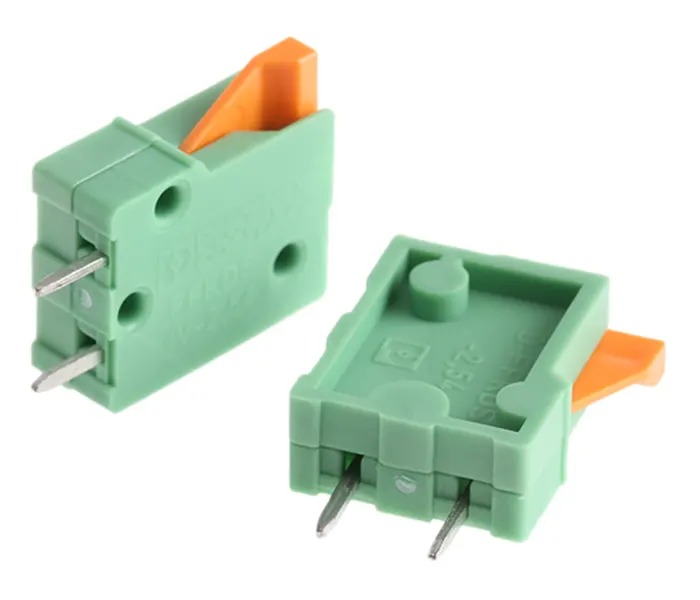

XY123V-2.54-XINYA-1 Pin Spring Terminal Block

XY123V-2.54-XINYA-1 Pin Spring Terminal Block

XY123V-2.54-XINYA-1 Pin Spring Terminal Block

The XY123V-2.54-XINYA-1 Pin Spring Terminal Block is a compact electrical connector featuring a spring clamp mechanism for secure wire termination. Designed for industrial applications, it ensures reliable connections with easy installation and maintenance. Its robust construction and efficient design make it ideal for various electrical wiring tasks in commercial settings. The XY123V-2.54-XINYA is a 1-pin spring terminal block, designed to provide a secure, easy-to-use connection for wires in electronic circuits. It features a 2.54mm pin pitch, making it compatible with standard PCB layouts. The spring clamp mechanism enables quick insertion and removal of wires, providing a solid, vibration-resistant connection. The terminal block is insulation protected, ensuring safety and minimizing the risk of short circuits.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Spring Mechanism: Provides a tool-free connection with strong holding force, allowing for quick wire insertion and removal.


• Compact Design: The small footprint of the terminal block makes it suitable for tight spaces and high-density circuit boards.


• Durability: Designed for long-lasting connections, capable of handling high levels of vibration and thermal expansion.


• High Electrical Conductivity: Made from high-quality conductive materials to ensure minimal power loss.


• Insulation Protection: Prevents accidental short circuits, ensuring electrical safety in the system.


Specifications of XY123V-2.54-XINYA-1 Pin Spring Terminal Block

• Number of Pins: 1 pin


• Pin Pitch: 2.54mm (standard pitch between pins)


• Wire Gauge Supported: Typically 26-20 AWG (American Wire Gauge)


• Rated Current: 3-5A (depending on the wire and application)


• Contact Material: High-conductivity copper or brass (tin-plated for corrosion resistance)


• Housing Material: High-quality insulating plastic (typically PA66 or similar flame-retardant material)


Package Includes

• 1 x XY123V-2.54-XINYA-1 Pin Spring Terminal Block
