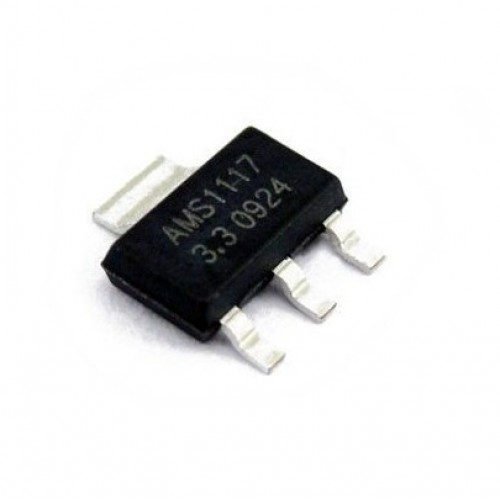

AMS1117-3.3V, 1A, SOT-223 Voltage Regulator SMD IC

AMS1117 Voltage Regulator 3.3V SOT-223 Low Dropout IC

AMS1117-3.3V, 1A Voltage Regulator, Low dropout, Thermal shutdown, 3.3V output.

The AMS1117 Voltage Regulator 3.3V SOT-223 is designed for low dropout applications, providing a stable output of 3.3V at 1A. It features a low standby current of 2mA and built-in thermal shutdown for enhanced safety. Ideal for various applications, this regulator ensures reliable performance in power management systems.

With a wide input voltage range of 1.8V to 15V, the AMS1117 Voltage Regulator 3.3V SOT-223 is suitable for battery chargers and linear regulation needs. Its compact SOT-223 package makes it easy to integrate into your designs. The device also supports high-efficiency linear regulation, which is crucial in modern electronics.

Applications include post regulators for switching supplies and power management for notebooks. For those looking to enhance their electronic projects, the AMS1117  Voltage Regulator 3.3V SOT-223 offers a dependable solution that meets various technical requirements.

Discover the reliability of AMS Voltage Regulators at DNA. Explore our range of Voltage Regulators to find the right fit for your project. Check other Voltage Regulators that we have in stock.

If you are searching for specific electronic parts, reach out to us. We can assist in sourcing components not listed, and we offer support for both retail and bulk orders. Check out our range of related items like DC to DC Converter Modules, Inductors, and Capacitors. Contact Us.

Features of AMS1117 Voltage Regulator 3.3V SOT-223 Low Dropout IC

• Low dropout voltage
• Load regulation: 0.2% typical
• On-chip thermal limiting
• Built-in thermal shutdown
• Good noise rejection
• Standard SOT-223 package
• Three-terminal adjustable or fixed low dropout

Specification of AMS1117 Voltage Regulator 3.3V SOT-223 Low Dropout IC

• No. of Outputs: 1
• Output Type: Fixed
• Polarity: Positive
• Input Voltage (V): 1.8V-15V DC
• Output Voltage (V): 3.3
• Max. Output Current (A): 1
• Operating Temperature (°C): -24 to 84

Applications of AMS1117 Voltage Regulator 3.3V SOT-223 Low Dropout IC

• High-Efficiency Linear Regulators
• Post Regulators for Switching Supplies
• 5V to 3.3V Linear Regulator
• Battery Chargers
• Power Management for Notebook

Package Includes

• 1 X AMS1117-3.3V, 1A, SOT-223 Voltage Regulator SMD IC
