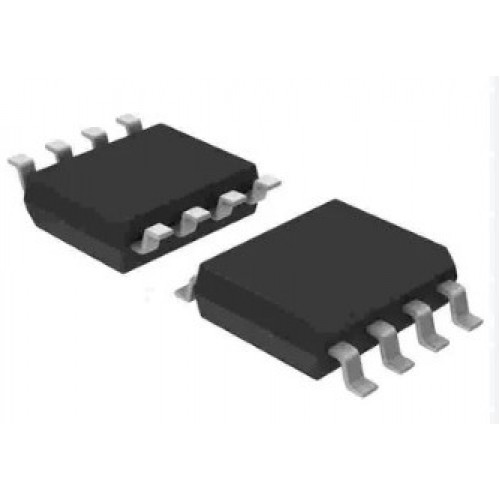

Product Images are shown for illustrative purposes only and may differ from actual product.

XLSEMI XL1509-ADJE1 Adjustable Buck DC-DC Switching Regulator

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: XL Semi
  • SKU: 9382 | DAD325

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 57.77 (inc GST)
    Rs.48.96 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XLSEMI XL1509-ADJE1 Adjustable Buck DC-DC Switching Regulator

XL1509-ADJE1 adjustable buck regulator with 4.5 V to 40 V input, 1.23 V to 37 V output and 2 A output current capability.

The XLSEMI XL1509-ADJE1 is an adjustable buck DC-DC switching regulator that converts a higher DC input into a lower output. It accepts 4.5 V to 40 V input and supports an adjustable output from 1.23 V to 37 V, with 2 A output current capability. This suits designs that need a set output from a changing DC supply.
Its fixed-frequency PWM control supports a consistent switching approach. Built-in thermal shutdown and current limiting help manage fault conditions. The ON/OFF input lets a host circuit enable or stop the regulator, which can help control power use.
Use this adjustable buck regulator in supported display, set-top box, and telecom or networking designs. Its SOP8L regulator package suits board-level power sections. The 4.5 V to 40 V input range supports DC step-down tasks in these products.
DNA offers the XLSEMI XL1509-ADJE1 for power conversion designs in the Voltage Regulators category. Check other Voltage Regulators that we have in stock
For Indian electronics buyers, DNA can help source hard-to-find parts and arrange import support. Ask about retail or bulk orders, or explore Sensor, MOSFET, SMPS, Digital IC, Power Supply and Programmer options. Contact Us

Features of XLSEMI XL1509-ADJE1 Adjustable Buck DC-DC Switching Regulator

  • Buck conversion lowers a DC input to an adjustable output
  • Fixed-frequency PWM control
  • Built-in thermal shutdown helps manage heat faults
  • Current-limit functions help manage excess current
  • ON/OFF input supports external enable control and defaults to on when left floating

Specifications of XLSEMI XL1509-ADJE1 Adjustable Buck DC-DC Switching Regulator

  • Input operating voltage: 4.5 V to 40 V
  • Adjustable output voltage: 1.23 V to 37 V
  • Output current capability: 2 A
  • Switching frequency: 150 kHz typical, 127 kHz minimum and 173 kHz maximum
  • Package: SOP8L, 8 pins
  • Operating temperature range: -40 °C to 85 °C
  • Efficiency: 74% typical at 12 V input, 3 V output and 2 A output

Applications of XLSEMI XL1509-ADJE1 Adjustable Buck DC-DC Switching Regulator

  • LCD monitors and LCD TVs
  • Digital photo frames
  • Set-top boxes
  • Telecom and networking equipment

Related Links for XLSEMI XL1509-ADJE1 Adjustable Buck DC-DC Switching Regulator

Package Includes

  • 1 X XLSEMI XL1509-ADJE1 Adjustable Buck DC-DC Switching Regulator
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
