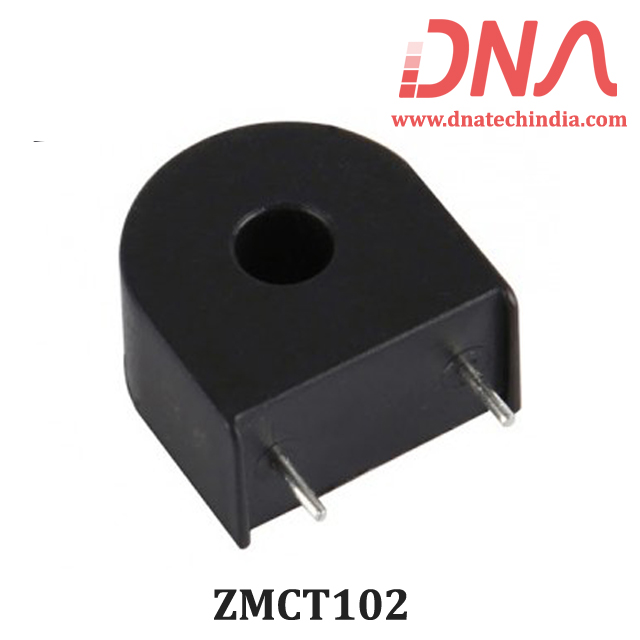

• ZMCT102 20 Ampere Current Transformer

Product Images are shown for illustrative purposes only and may differ from actual product.

ZMCT102 20 Ampere Current Transformer

  • Stock: 500
  • SKU: 2574 | DAE009
  • Rs. 64.90 (inc GST)
    Rs.55.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

ZMCT102 Current Transformer

20 Ampere Mini PCB Mounting Current Transformer Ratio: 2000 : 1

ZMCT102 is a micro precision current transformer having a turns ratio of 2000:1 and can monitor maximum AC current of 20 Ampere. ZMCT102 micro current transformer is very compact and light weight and can be easily mounted on PCB making it perfect for various power monitoring applications.

The ZMCT102 CT (current Transformer) provides high accuracy and high isolation (4500 volts) making it perfect for your next AC current monitoring project.

We have various types of Load CellsForce SensorFlex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Feature of ZMCT102 Current Transformer

  • Application Would Include Current, Power, And Energy Monitoring Device
  • Current Measurement
  • Precision Power Meter
  • Low Cost, Small Size High accuracy, PCB Mounting Pattern
  • Fully ROHS Compliant, CE proved

Specification of ZMCT102 AC Current Transformer

  • Model : ZMCT102
  • Input Current : 0 - 20 Ampere (100Ω)
  • Output Current : 2.5mA at 5 Ampere
  • Turns ratio : 2000:1
  • phase angle Error : Input 1 A, Sampling Resistor 100Ω
  • Linearity : ≤0.2%
  • Permissible error -0.2%≤f≤+0.2%
  • Isolation Voltage : 4500 Volts
  • Application : Current and Power Measurement
  • Encapsulation : Epoxy
  • Installation : PCB Mounting (Pin Length>3mm)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
