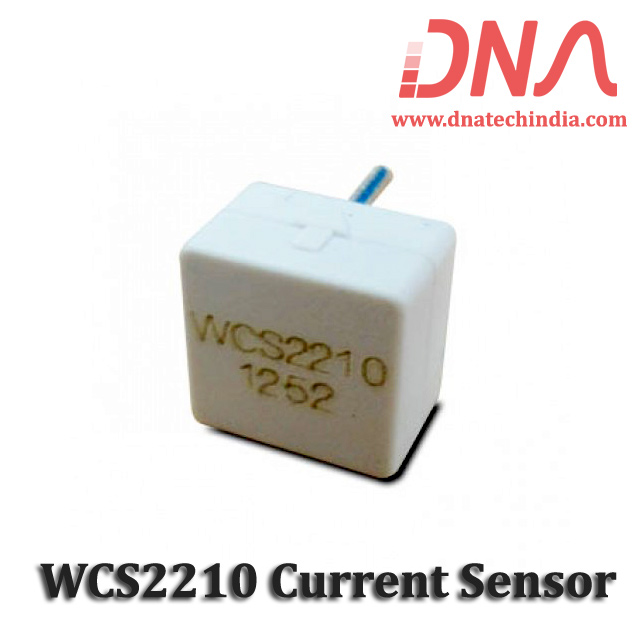

WCS2210 Linear AC Current Sensor

  • Stock: 15
  • Brand: Winson
  • SKU: 0674 | DAA584
  • Rs. 365.80 (inc GST)
    Rs.310.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

WCS2210 Linear AC Current Sensor

WCS2210 Current Sensor with 0 to 12 Ampere current sensing range and sensitivity of 130 mv/A.

The Winson WCS2210 Linear AC current Sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems. The unique package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc.

The WCS2210 Hall effect current Sensor consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation and AC to DC rectifier circuit and a current path with 0.4 mΩ typical internal conductor resistance. This extremely low resistance can effectively reduce power loss, operating temperature and increase the reliability greatly. Applied current flowing through this conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional rectified DC voltage.

The terminals of the conductive path are electrically 1,000V isolated from the sensor leads. This allow the WCS2210 AC current sensor to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques and make system more competitive in cost.

DNA Solutions has a large collection of various types of Current and Voltage Sensors. Check our complete collection of Current and Voltage Sensor.

Features of WCS2210 AC Current Sensor

  • Built-in AC to DC rectifier circuit

  • 0.4 mΩ internal conductor resistance

  • Output voltage proportional to AC and DC current

  • Min. sensing current 0~1 2A at 5V voltage supply

  • High Sensitivity 130 mV/A

  • Wide operating voltage range 3.0~12 V.

  • Low operating current 3.3 mA

  • Nearly zero magnetic hysteresis.

  • Ratiometric output from supply voltage

  • 23K Hz bandwidth
