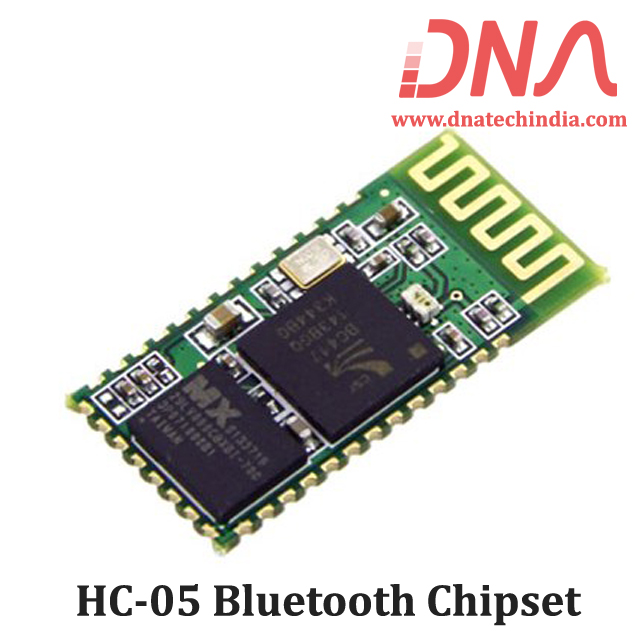

HC-05 Bluetooth Chipset

  • Stock: 5
  • SKU: 1500 | DAA825
  • Rs. 295.00 (inc GST)
    Rs.250.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

HC-05 Bluetooth Module Chipset

This is only the chipset not the HC05 Module with ttl interface

Bluetooth module (SMD) using chipsets BlueCore4 CSR. It has seven I / O ports, 8 Mbit flash memory for software storage and two modes of operation: via AT commands and transparently. In transparent mode it can be configured as Master, Slave or Loopback, and can connect to other devices that support SPP. In the AT command mode, the user can configure the module and send commands. By controlling the logic level of pin PIO11, the user can activate the work mode between AT command and transparent.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

HC-05 Specification

  • Bluetooth protocal : Bluetooth Specification v2.0+EDR
  • Frequency : 2.4GHz ISM band
  • Modulation : GFSK(Gaussian Frequency Shift Keying)
  • Emission power : ≤4dBm, Class 2
  • Sensitivity : ≤-84dBm at 0.1% BER
  • Speed : Asynchronous : 2.1Mbps(Max) / 160 kbps, Synchronous : 1Mbps/1Mbps
  • Security : Authentication and encryption
  • Profiles : Bluetooth serial port
  • Power supply : +3.3VDC 50mA
  • Working temperature : -20 ~ +75Centigrade
  • Dimension : 26.9mm x 13mm x 2.2 mm

Application:

  • Computer and peripheral devices
  • GPS receiver
  • Industrial control
  • MCU projects

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
