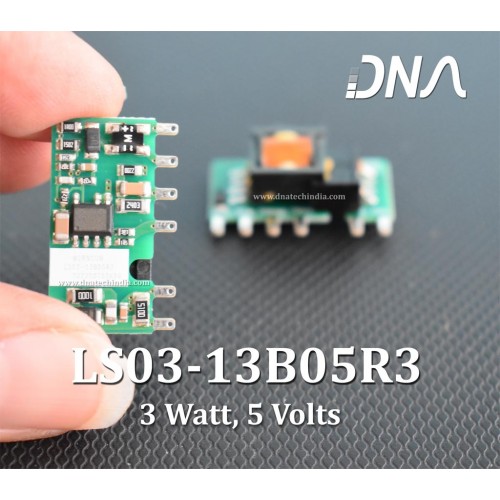

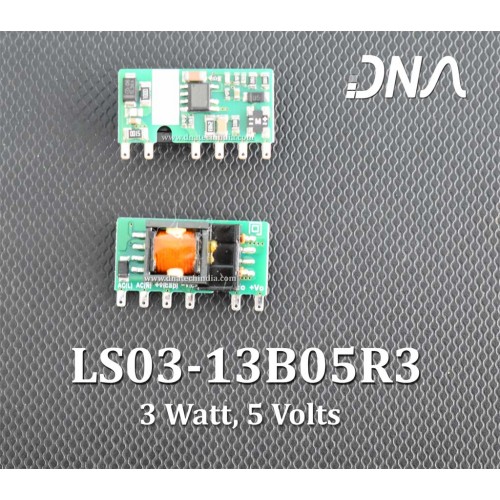

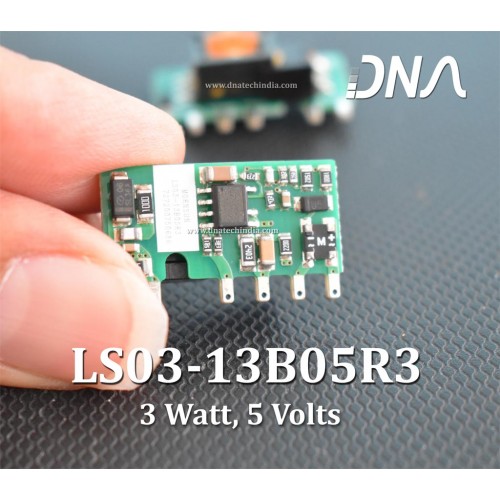

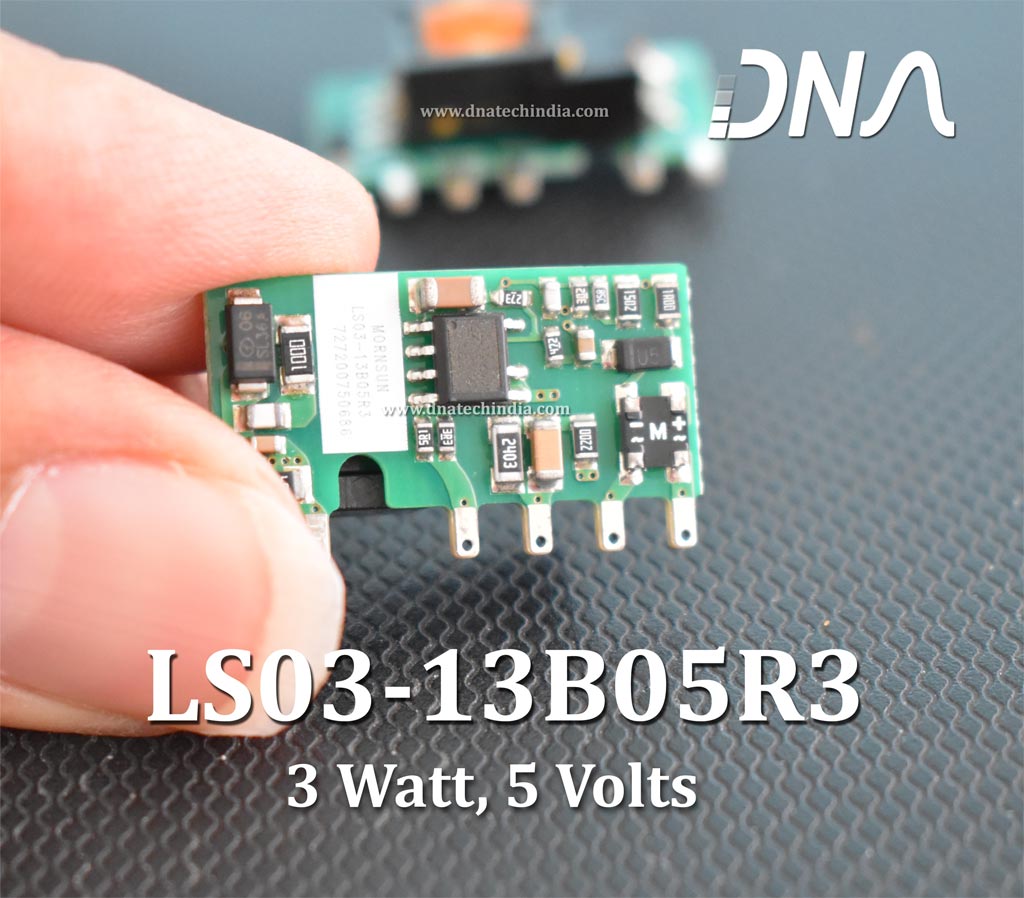

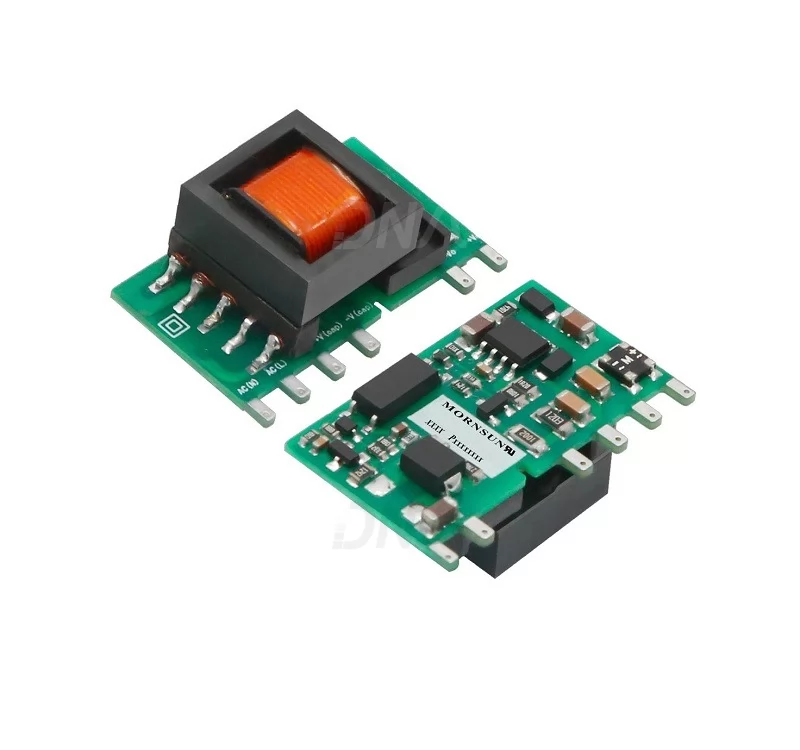

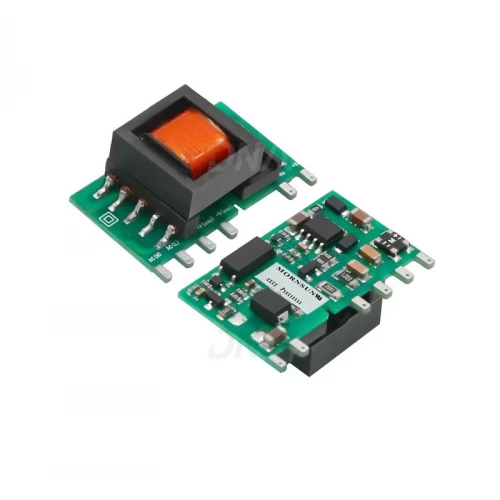

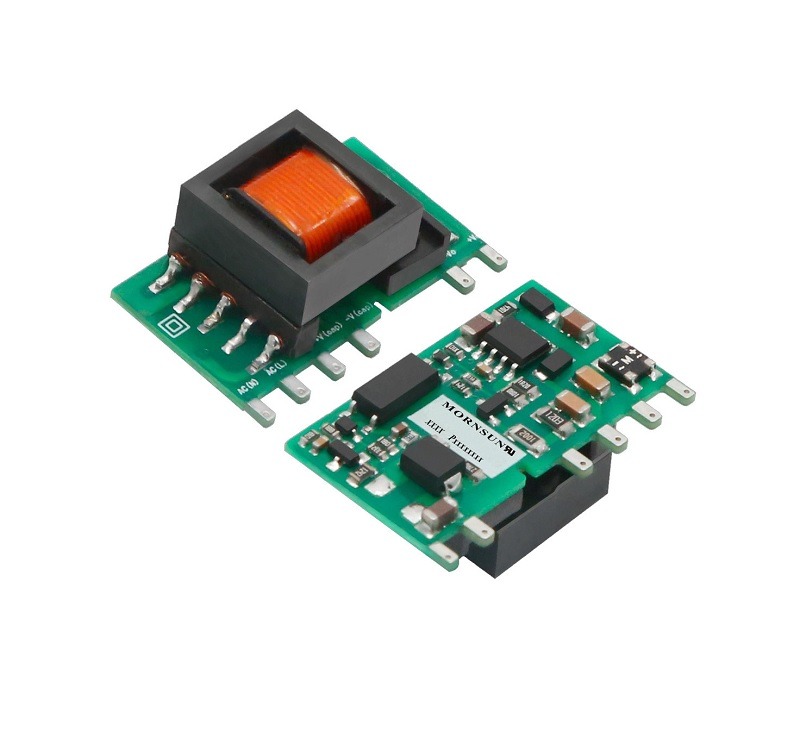

LS03-13B05R3 5 Volt AC to DC Power Supply

LS03-13B05R3 3 watt, 5 Volt PCB Mount AC to DC Converter

LS03-13B05R3 is one of Mornsun’s highly efficient green power AC-DC Converter series. LS03-13B05R3 is a 3 watt AC-DC converter with 5 volts output at 600 ma.  LS03-13B05R3 module accepts both AC (85 – 305 Volts)  as well as DC (70 – 430 Volts) input and provides a constant 5 volts regulated DC output.  Check the datasheet for the extra hardware required to use this module.

LS03-13BXXR3 Series feature wide input range accepting either AC or DC voltage, high reliability, low power consumption and reinforced isolation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC.

NOTE: Extra hardware is required to use this Module. Please check the datasheet given below for details.

Feature of LS03-13B05R3 AC to DC converter

• Ultra-wide 85 – 305 Volts AC and 70 – 430 Volts DC input voltage range
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range -40℃ to +85℃
• Multi application, flexible layout
• Compact size, high power density, green power
• Controllable life and adjustable cost
• No-load power consumption 0.1 Watts
• Output short circuit, over-current protection
• Designed to meet IEC/EN61558, IEC/EN60335 standards
• IEC/EN/UL62368 safety approval
