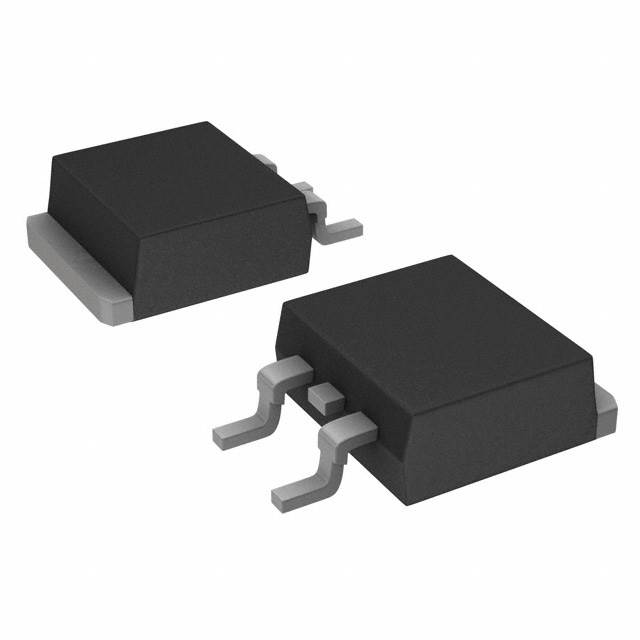

STMICROELECTRONICS STB100NF04T4 N Channel Power MOSFET

STMICROELECTRONICS STB100NF04T4 N Channel Power MOSFET

The STMICROELECTRONICS STB100NF04T4 is a high-performance N-channel power MOSFET designed for low voltage, high current switching applications. Featuring low on-resistance and fast switching capability, this MOSFET provides excellent efficiency and thermal performance. With a maximum drain current of 100A and a low gate threshold voltage, it is well-suited for DC-DC converters, motor control, and other power management applications. Its robust design ensures reliable operation even in demanding environments.

DNA solutions, Nashik has various types of MOSFET's. Check out our complete collection of MOSFET's.

Features of STMICROELECTRONICS STB100NF04T4 N Channel Power MOSFET

• Low on-resistance for high efficiency

• High continuous drain current up to 100A

• Low gate charge for fast switching

• Low gate threshold voltage

• High avalanche energy capability

Specifications of STMICROELECTRONICS STB100NF04T4 N Channel Power MOSFET

• Drain-source voltage: 40 V

• Continuous drain current: 100 A

• Gate threshold voltage: 2-4 V

• Rds(on): 4 mΩ max at Vgs = 10 V

• Total gate charge: 150 nC

• Power dissipation: 300 W

Applications of STMICROELECTRONICS STB100NF04T4 N Channel Power MOSFET

• DC-DC converters

• Motor control and drive systems

• Low voltage switching applications

• Power supplies

Package Includes

      1 x STMICROELECTRONICS STB100NF04T4 N Channel Power MOSFET
