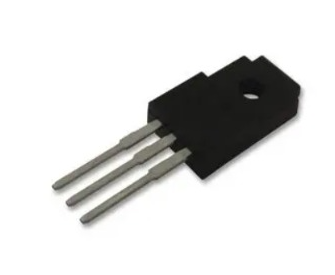

STF5NK100Z N-Channel Power MOSFET TO-220FP Package

STF5NK100Z: 1000V N-Channel SuperMESH3™ MOSFET for High-Efficiency Power Switching

The STF5NK100Z MOSFET is an N-Channel 1000 V SuperMESH3™ power MOSFET engineered for high-efficiency, high-voltage switching applications. With a drain-source voltage of 1000 V, a continuous drain current of 3.5 A, and low on-resistance of 2.7 Ω, the STF5NK100Z ensures minimal conduction losses and robust avalanche performance. Housed in an insulated TO-220FP package, it provides excellent thermal performance and electrical insulation for compact, reliable designs.

DNA is a trusted supplier of MOSFETs and power transistors in India, offering retail and bulk purchase options. We stock popular electronic components like BJTs, MOSFETs, and rectifier diodes, available for fast dispatch across India.

Can’t find the exact transistor or Electronic Component? Our team can help you source it,  click here to contact us.

Features of STF5NK100Z MOSFET

• N-Channel SuperMESH3™ power MOSFET
• High drain-source voltage: 1000 V
• Continuous drain current: 3.5 A (T_c=25 °C)
• Low R_DS(on): 2.7 Ω max (V_GS=10 V, I_D=1.75 A)
• Excellent avalanche ruggedness
• Low gate charge for fast switching
• Insulated TO-220FP package for safety and compact design

Specifications of STF5NK100Z MOSFET

• Transistor Type: N-Channel MOSFET
• Drain-Source Voltage (V_DSS): 1000 V
• Gate-Source Voltage (V_GS): ±30 V
• Continuous Drain Current (I_D): 3.5 A (T_c=25 °C)
• Pulsed Drain Current (I_D(pulse)): 14 A
• On-Resistance (R_DS(on)): 2.7 Ω max
• Total Gate Charge (Q_g): 38 nC (typ.)
• Input Capacitance (C_iss): 910 pF
• Reverse Recovery Time (t_rr): 430 ns
• Power Dissipation (P_D): 45 W
• Operating Junction Temperature (T_j): 150 °C
• Package: TO-220FP

Applications of STF5NK100Z MOSFET

• Switch-mode power supplies (SMPS)
• Lighting ballasts
• High-voltage converter and inverter circuits
• Industrial power control

Related Links

• STF5NK100Z Datasheet (PDF)
• Browse More MOSFETs & IGBTs

Package Include

• 1 x STF5NK100Z N-Channel Power MOSFET (TO-220FP)
