Product Images are shown for illustrative purposes only and may differ from actual product.

DIP switch 3 Way


Write a review | 1 reviews

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-11-02

  • SKU: 2990 | DAE701

Availability: InStock priceValidUntil: 2026-11-02

  • Rs. 13.92 (inc GST)
    Rs.11.80 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

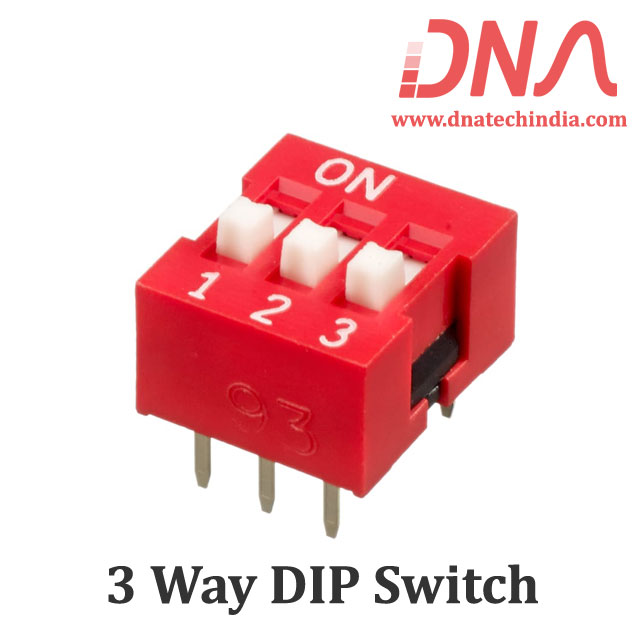

3 Way DIP Switch

3 Way DIP Switch with Slide Type, 6 Pins, Max Voltage 50V DC.

The 3 Way DIP Switch is a slide type switch designed for easy PCB mounting. This switch features 3 positions and 6 pins, making it suitable for general-purpose applications on PCBs and breadboards. With a maximum operating voltage of 50 Volts DC and a current capacity of 100mA DC, it provides reliable performance for various electronic projects. Its compact design and simple installation make it an ideal choice for hobbyists and professionals alike in India.

This DIP switch operates within a temperature range of -20 to 80°C, ensuring durability and longevity with a life expectancy of 1000 operations. The contact resistance is less than 100mOhm, ensuring efficient signal transmission. The 3 Way DIP Switch is perfect for applications requiring a reliable and adjustable switching mechanism.

Explore the 3 Way DIP Switch for your electronic needs and enhance your projects with this versatile component. Its slide type design and robust specifications make it a valuable addition to any electronics toolkit.

Discover quality components at DNA. Explore the Manufacturer range in the Switches & Keypad category. Enhance your projects with reliable switches. Check other Switches & Keypad that we have in stock.

At DNA, we cater to all your electronic component needs. If you're looking for specific parts like Diodes, Sensors, or Microcontrollers, reach out to us. We can import items not in stock and support both retail and bulk orders. Contact Us.

Features of 3 Way DIP Switch

  • 3 Positions
  • 6 Pins
  • Slide Type
  • SPST
  • PCB Mounted
  • Color: Red & White

Specification of 3 Way DIP Switch

  • Max Operating Voltage: 50 Volts DC
  • Max Current Capacity: 100mA DC
  • Max Switching: 0.8 Watt
  • Contact Resistance <100mOhm
  • Life Expectancy: 1000 operations
  • Operating Temperature: -20 to 80°C

Applications of 3 Way DIP Switch

  • General purpose PCB applications
  • Breadboard projects
  • Electronic circuit designs
  • DIY electronics
  • Switching mechanisms in devices

Related Links for 3 Way DIP Switch

Package Includes

  • 1 X 3 Way DIP Switch
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
