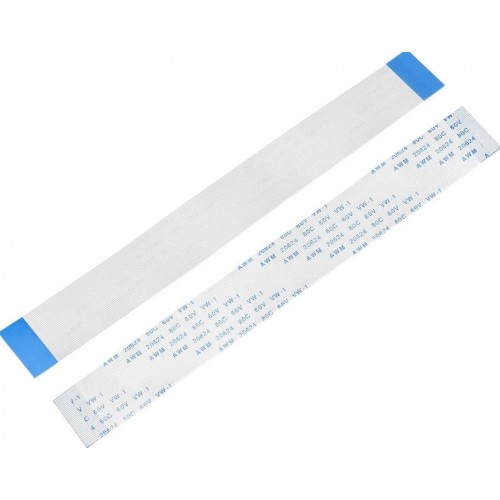

36 Pin To 36 Pin 0.5mm FFC Cable Extension Flat Connector Module

36 Pin To 36 Pin 0.5mm FFC Cable Extension Flat Connector Module

36 Pin To 36 Pin 0.5mm FFC Cable Extension Flat Connector Module is a compact and efficient board that extends 36-pin 0.5mm pitch FFC/FPC cables. It allows for easy connection between two FFC cables using a simple plug-and-play flat cable slot. Ideal for signal routing, prototyping, or adapting between connectors, this module ensures a stable and reliable connection with minimal signal interference.

DNA solutions, Nashik has various types of FPC/FFC Cable Modules . Check out our complete collection of FFC/FPC Connectors & Modules.

Features of 36 Pin To 36 Pin 0.5mm FFC Cable Extension Flat Connector Module

• Supports 36-pin 0.5mm pitch FFC cables

• Plug-and-play extension design

• Dual-side ZIF connectors for easy insertion

• Reliable and stable signal transmission

• Compact and lightweight

• Ideal for prototyping and adapting FPC/FFC cable routes

Specifications of 36 pin to 36 pin 0.5mm FFC Cable extension Flat connector Module

• Connector Type: ZIF (Zero Insertion Force)

• Pin Count: 36 Pins

• Pitch: 0.5mm

• Mounting Type: Through-hole/PCB compatible

• Material: FR4 Board with pre-mounted connectors

• Application: FFC/FPC cable extension, adapter modules

Applications of 36 pin to 36 pin 0.5mm FFC Cable extension Flat connector Module

• Display and touch panel interfaces

• Prototype development boards

• Flexible cable routing in embedded systems

• Signal adapter solutions for compact PCBs

• Repairs and modifications of cable-linked modules

Package Includes

     1 x 36 Pin To 36 Pin 0.5mm FFC Cable Extension Flat Connector Module
