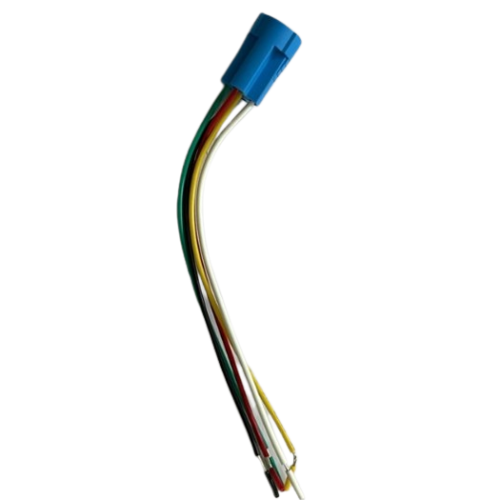

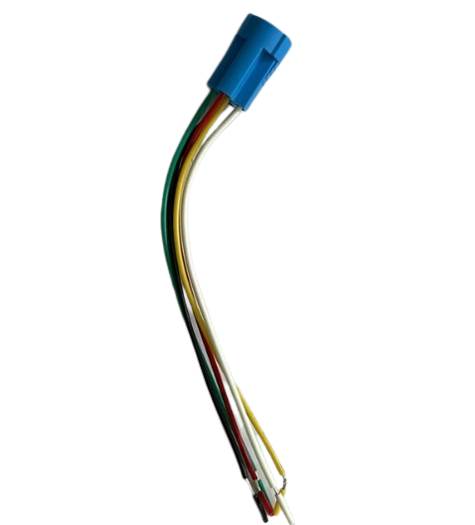

Wiring Harness for SS16 Switch


Write a review | 0 reviews

  • Stock: 20

    Availability: InStock priceValidUntil: 2026-11-06

  • SKU: 8612 | DAH905

Availability: InStock priceValidUntil: 2026-11-06

  • Rs. 108.56 (inc GST)
    Rs.92.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Wiring Harness for SS16 Push Button Switch

Wiring Harness for SS16 Switch, plug-and-play connection, 5-pin compatibility, 12V/24V DC support.

The Wiring Harness for SS16 Push Button Switch simplifies your connections with its pre-assembled design. This harness is perfect for 16mm SS series metal push button switches, providing reliable connections in control panels and automation systems. With its durable PVC insulation and tinned copper wires, it ensures optimal conductivity and stability across a wide voltage range of 12V to 24V DC.

Designed for ease of use, the Wiring Harness for SS16 Push Button Switch features color-coded wires that assist in correct terminal mapping. This makes it ideal for applications in DIY electronics, automotive dash panels, and home automation interfaces. The plug-and-play connector allows for quick installation, eliminating the need for soldering or crimping.

Whether you're working on a test bench or a robotics project, the Wiring Harness for SS16 Push Button Switch provides the flexibility and reliability you need. Explore how this wiring harness can enhance your electronic projects and ensure stable connections every time.

At DNA Solutions, we offer a wide range of reliable Switches & Keypad products. Explore the Wiring Harness for SS16 Push Button Switch and more in this category. Check other Switches & Keypad that we have in stock.

If you're searching for specific electronic components, DNA can assist you. We can import parts not currently available and support both retail and bulk orders. Check out our range of Microcontrollers, SMPS, LCDs, and more. Contact Us.

Features of Wiring Harness for SS16 Push Button Switch

  • Pre-crimped wiring harness for 16mm SS switches
  • Compatible with 5-pin push button switch (NO/NC + LED)
  • Plug-and-play connector for quick installation
  • Color-coded wires for easy identification
  • Durable PVC insulation and flexible wire jacket
  • Suitable for both 12V and 24V DC switches

Specifications of Wiring Harness for SS16 Push Button Switch

  • Connector Type: 5-pin female socket
  • Wire Gauge: 24 AWG (approx.)
  • Wire Length: Approx. 20cm
  • Material: Tinned Copper with PVC insulation
  • Operating Voltage: 12V / 24V DC
  • Temperature Range: -20°C to 80°C

Applications of Wiring Harness for SS16 Push Button Switch

  • Control Panels and Switchboards
  • DIY Electronics and Robotics
  • Automotive Dash Panels
  • Home Automation Interfaces
  • Signal Switching and LED Indicators

Related Links for Wiring Harness for SS16 Push Button Switch

Package Includes

  • 1 X Wiring Harness for SS16 Push Button Switch
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
